CARD SLIVER SYSTEM

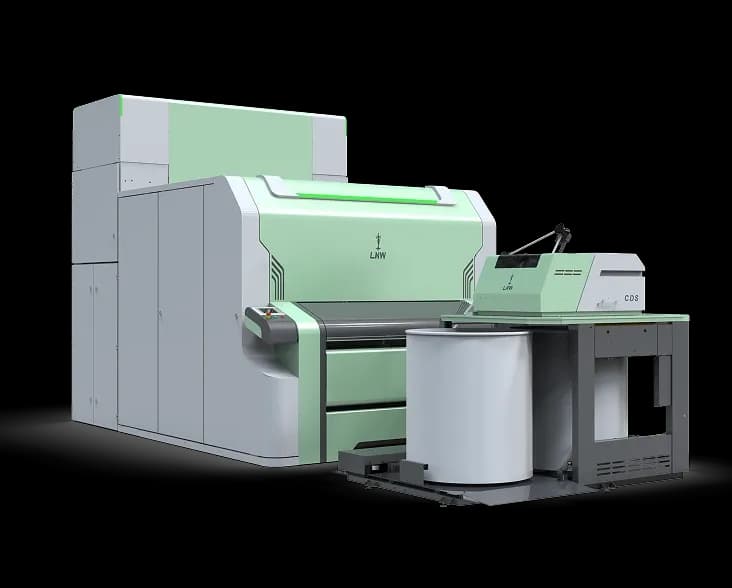

Card LC636 SX
The High-Output Carding Benchmark
1.5m wider-width card engineered for high speeds, exceptional fibre control, and world-class sliver consistency. The Card LC636 SX, with its 1.5m width, provides a large active carding and cylinder area that is built to deliver exceptional gains in productivity, energy efficiency and sliver uniformity. The aluminium alloy flats ensure stable carding action and efficient waste removal. With advanced features like CDS/Fix-Fil options and a 1.5 m working width, this card is for mills that want the highest throughput without compromising yarn quality.
- Optimum active carding area of 1.95 m² and cylinder area of 3.95 m²
- Precision-controlled feed system with multilevel sensors for auto-levelling
- Unique arcual combing segment enabling gentle opening
- Aluminium alloy flats with 36 working flats and patented brass clip flat tops
- Unidirectional feeding arrangement for stable fibre grip
- Improved stability through low thermal expansion materials
- High-speed 40" × 48" linear can changer with positive sliver cutter for uniform coiling
- Auto-regulated chute feed with closed-loop levelling for consistent sliver quality
- Controlled waste removal with optimized extraction in pre and post-carding zones
Active Carding Area
Most of the area in the card is occupied by technological elements like Pre carding, Flats & Post carding. This is technically mentioned as active carding area where the technological elements occupy 82% of the cylinder surface.

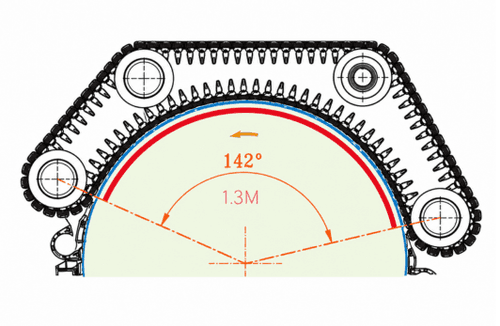

The REAL Carding Area – Active Flat Area
The actual carding action takes place between revolving flats and the cylinder. Card LC636 SX has 101 total flats out of which 36 Flats are in working position occupying 142 degrees of cylinder periphery which works out to be 1.3m. Hence, the total active carding area covered of working flats is 1.95m2

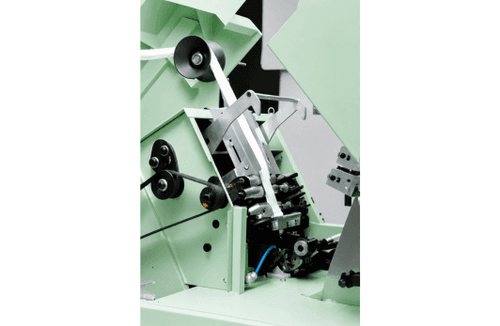

CDS – Card with Drafting System
Card LC636 SX can be offered with Integrated drafting system. The CDS comes with 2 over 2 pneumatically loaded drafting system with servo control. The Intelligent auto levelling system ensures the consistent quality of the sliver delivered from Card. The maximum delivery speed of 700 MPM is possible with CDS. The drafting is equipped with easy adjustment of load for drafting rollers.

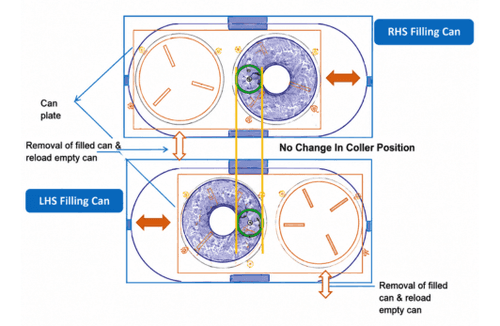

Fix-Fil Can Changer Arrangement
Card LC636 SX can be offered with the delivery can size dia. of 1200mm. The unique concept of can changer is developed to handle bigger can for minimizing space. In the Fix-Fil concept the coiler is strategically positioned for minimal movement of can which helps with reduction in can movement and space.
