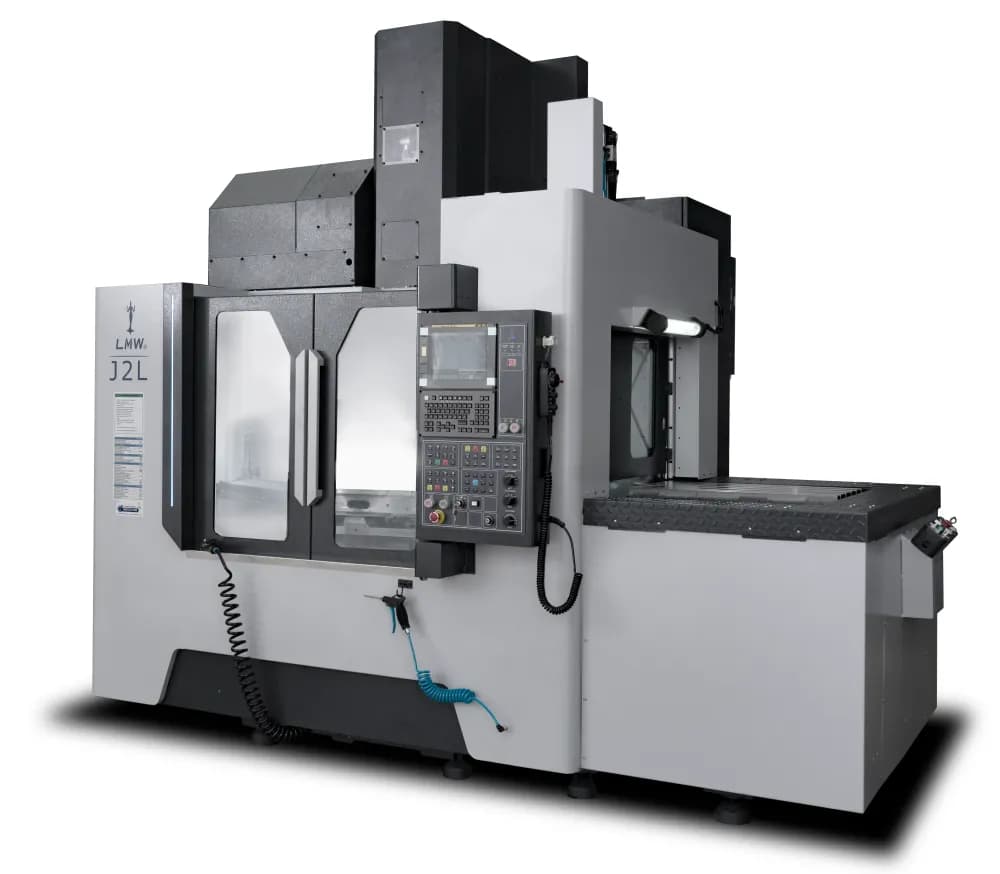

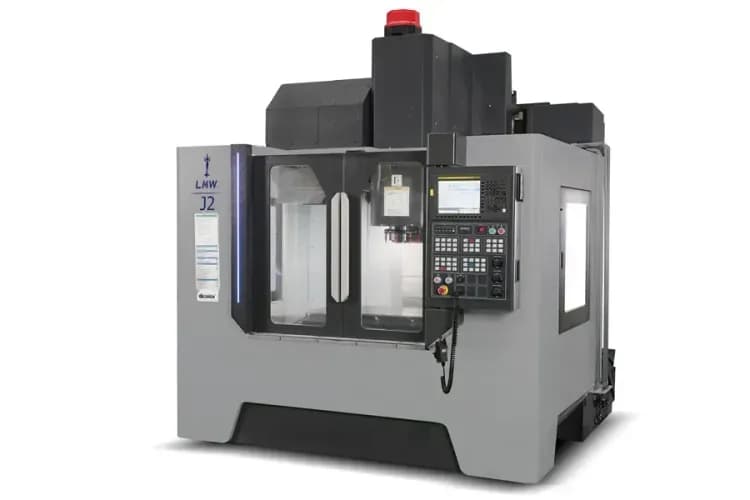

J2L
J2L is a versatile Vertical Machining Center (VMC) designed for machining medium to large components with high stability and precision. With axis strokes of 800 × 520 × 520 mm, a 800 × 500 mm table, and spindle speeds up to 10,000 rpm. It comes with Linear Automatic Pallet Changer (LAPC) to enhance productivity and minimizes setup time for demanding industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
800 x 520 x 520 mm800 x 520 x 520
Distance between Spindle nose & Table top
mm
150-670 mm150-670
Pallet Size
mm
800 x 500 mm800 x 500
Pallet Loading Capacity
kg
2 x 350 kg2 x 350
Pallet Change Type
Type
Linear TypeLinear
Pallet Indexing Time
sec
18 sec18
No. of . T-Slots
Nos.
5 Nos.5
T-Slot Size X Pitch
mm
18 x 100 mm18 x 100
Spindle bore taper
Type
BT 40 Type BT 40
Spindle speed
rpm
10000 rpm10000
Spindle Motor Power (Cont. /Int.)
kW
11/15/18.5 (15/18.5) kW11/15/18.5 (15/18.5)
Max. Spindle Torque
Nm
52.5/70/95.5/118 (71.6/95.5) Nm52.5/70/95.5/118 (71.6/95.5)
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
30/40/40 m/min30/40/40
Cutting Feed rate
m/min
10 m/min10
Guideways on all axes
Type
LM guideways TypeLM guideways
Ballscrew Size X,Y & Z Axes (DiaxPitch)
mm
Ø40 X 12 / 16 mmØ40 X 12 / 16
No. of tools
Nos.
24 (30) Nos.24 (30)
Tool shank configuration
type
BT 40 typeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. Tool length
mm
300 mm300
Max. Tool weight
kg
8 kg8
Tool change time (tool to tool)
sec
1.9 / 2.5* sec1.9 / 2.5*
Length x Width x Height
mm
3110 x 3120 x 2845 mm3110 x 3120 x 2845
Weight
kg
6000 kg6000
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
