MILLING
JD2

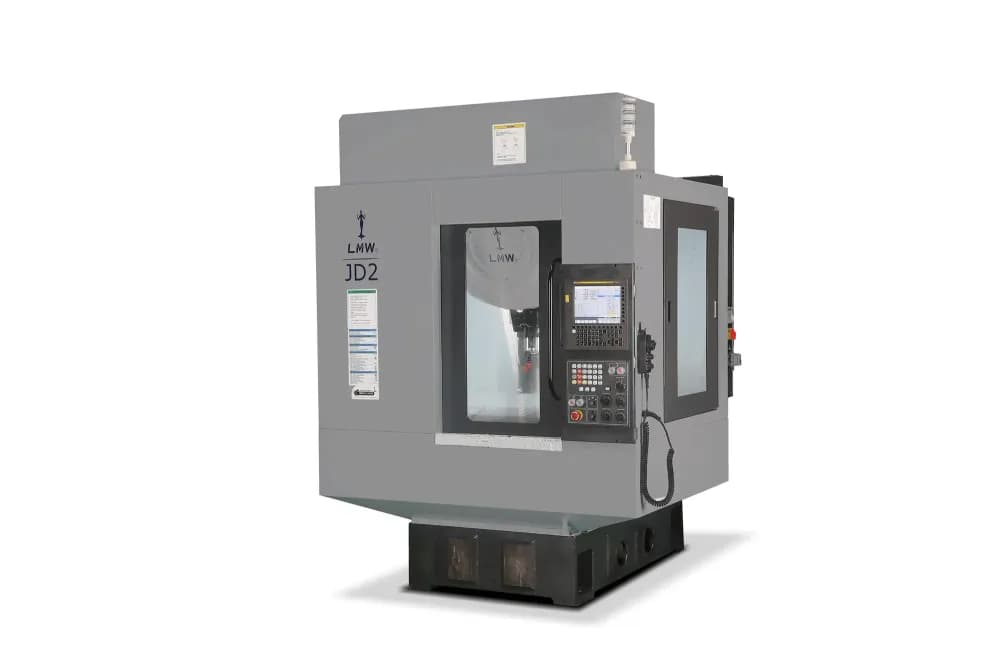

JD 2 is a compact Vertical Machining Center designed for precision milling and high-speed machining of small components. With axis strokes of 500 × 400 × 320 mm, a 650 × 400 mm table, and a 12,000 rpm spindle, it offers reliable performance for precision applications. The JD Series is ideal for electronics, medical, aerospace, and automobile industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
500 x 400 x 320 mm500 x 400 x 320
Distance between Spindle nose & Table top
mm
150 - 470 mm150 - 470
Table size
mm
650 x 400 mm650 x 400
Table loading capacity
kg
250 kg250
No. of T-slots
Nos.
3 Nos.3
T Slot size x Pitch
mm
14 x 125 mm14 x 125
Spindle bore taper
Type
BT 30 Type BT 30
Spindle speed
rpm
12000 rpm12000
Spindle Motor Power (Cont. /Int.)
kW
3.7 / 5.5 / 7.5 kW3.7 / 5.5 / 7.5
Max. Spindle Torque
Nm
17.7 / 35 / 47.8 Nm17.7 / 35 / 47.8
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
48/48/48 m/min48/48/48
Cutting Feed rate
m/min
21 m/min21
No. of tools
Nos.
21 Nos.21
Tool shank configuration
type
MAS BT30 / 45° typeMAS BT30 / 45°
Max. Tool dia with adjacent tool
mm
Ø 60 mmØ 60
Max. Tool length
mm
200 mm200
Max. Tool weight
kg
3 kg3
Tool change time (tool to tool)
sec
1.5 sec1.5
Length x Width x Height
mm
1660 x 2677 x 2600 mm1660 x 2677 x 2600
Weight
kg
2700 kg2700
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
0.008 mm0.008
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
