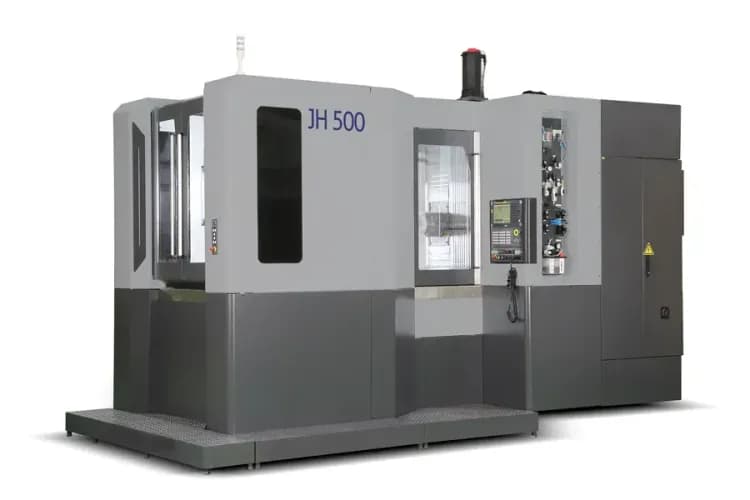

JH 500
JH 500 is a heavy-duty Horizontal Machining Center designed for demanding machining applications and consistent production performance. With axis strokes of 800 × 800 × 800 mm and a 500 × 630 mm pallet, it offers stable and precise machining for a wide range of components. Available with a Rotary Automatic Pallet Changer, it helps improve productivity and reduce setup time. It is well-suited for Pump & Valve, Automobile, Agri & Earthmovers, Oil & Gas, and Defence industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
800 x 800 x 800 mm800 x 800 x 800
Max. Work piece diameter
mm
800 mm800
Max. Work piece length
mm
900 mm900
Pallet size
mm
500 x 630 mm500 x 630
No of Pallets
nos.
2 nos.2
Maximum load on pallet
kgs
500 kgs500
Spindle speed
rpm
6000 rpm6000
Spindle bore taper
type
BBT40 typeBBT40
Motor power (cont./S2 15 min S3 25%)
kW
26 / 22 / 18.5 kW26 / 22 / 18.5
Rapid traverse rate ( X / Y / Z )
mm
48/48/48 mm48/48/48
No. of tools
nos
40 nos40
Max. tool length
mm
300 mm300
Max. tool weight
kgs
8 kgs8
Front x Side x Height
mm
2850 x 5610 x 3440 mm2850 x 5610 x 3440
Weight
kgs
12000 kgs12000
Power
kW
26 / 22 / 18.5 kW26 / 22 / 18.5
