MILLING

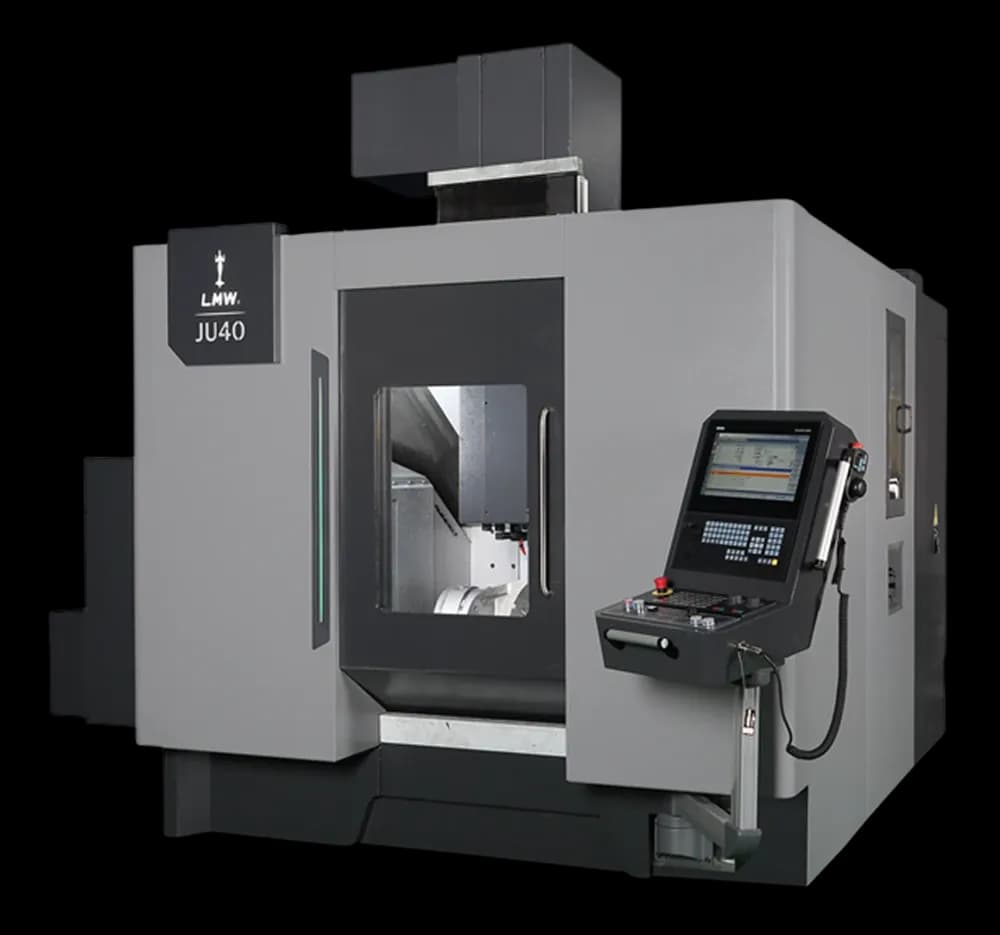

JU 40
JU 40 is a high-speed 5-Axis Vertical Machining Center designed for precision machining of complex components in a single setup. With axis strokes of 400 × 550 × 550 mm and a Ø500 mm round table, it accommodates workpieces up to 500 × 400 mm. Equipped with a BBT 40 spindle taper, 15,000 rpm spindle speed, and 48 m/min rapid traverse, JU 40 enables high-speed machining, improved accuracy, and reduced cycle time for advanced manufacturing applications in industries like Aerospace, Medical, Energy, Automobile.
Specifications
Description
Unit
Type
X/Y/Z - Axis
mm
400 x 550 x 550 mm400 x 550 x 550
Table Indexing Angle - A Axis
Deg
-120°/ +30° Deg-120°/ +30°
Table Indexing Angle - C Axis
Deg
360° Deg360°
Table Size
mm
Ø 500 mmØ 500
Table loading capacity
kg
300 kg300
Max. Work Piece Size (d x h)
mm
Ø 500 x 400 mmØ 500 x 400
Spindle speed
rpm
15000 rpm15000
Spindle Bore Taper
Type
BBT 40 TypeBBT 40
Spindle Motor Power (Cont. /Int.)
kW
22/26.5/33 kW22/26.5/33
Max. Spindle Torque
Nm
140/160/210 Nm140/160/210
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
48 / 48 / 48 m/min48 / 48 / 48
Guideways on all axes
Type
LM guideways TypeLM guideways
No. of tools
Nos.
48 Nos.48
Max. Tool length
mm
300 mm300
Controller
Type
Siemens TypeSiemens
