MILLING

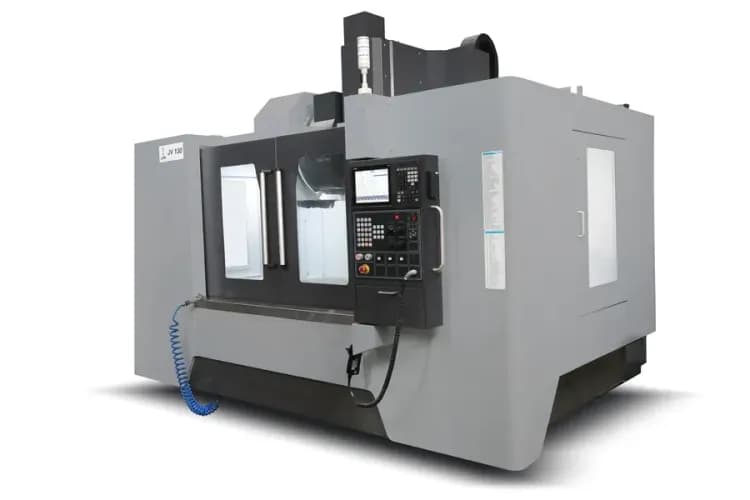

JV 130
JV 130 is a heavy-duty Vertical Machining Center designed for machining large components with high stability and productivity. With axis strokes of 1300 × 700 × 650 mm, a 1350 × 660 mm table, and a 6000 rpm spindle, it provides strong cutting capability for demanding machining applications.
Specifications
Description
Unit
Type
X/Y/Z - Axis
mm
1300 x 700 x 650 mm1300 x 700 x 650
Distance between Spindle nose & Table top
mm
100-750 mm100-750
Table Size
mm
1350 x 660 mm1350 x 660
Table Loading Capacity
kg
950 kg950
T Slot size x Pitch
mm
18 x 100 mm18 x 100
No. of T-slots
Nos.
5 Nos.5
Spindle speed
rpm
6000 rpm6000
Spindle Bore Taper
Type
BT 40 TypeBT 40
Spindle Motor Power (Cont. /Int.)
kW
11 / 15 kW11 / 15
Max. Spindle Torque
Nm
78 / 143 Nm78 / 143
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
36 / 36 / 24 m/min36 / 36 / 24
Cutting feed rate
m/min
10 m/min10
No. of tools
Nos.
20 Nos.20
Tool Shank Configration
Type
BT 40 TypeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. Tool length
mm
250 mm250
Max. Tool weight
kg
8 kg8
Tool change time (tool to tool)
sec
3.5 sec3.5
Length x Width x Height
mm
3400 x 4060 x 2800 mm3400 x 4060 x 2800
Weight
kg
10000 kg10000
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
