JV 150

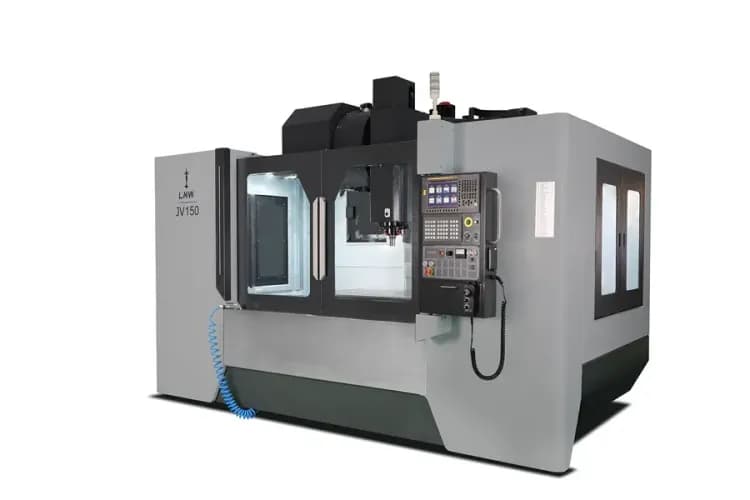

JV 150 is a heavy-duty Vertical Machining Center designed for machining large components with high rigidity and productivity. With axis strokes of 1550 × 760 × 760 mm, a 1700 × 700 mm table, and an 8000 rpm spindle, it provides high machining capacity and stable cutting performance. It is suitable for Agri & Earthmovers, Foudry & Forging, Die Mould, Valve, Industrial Machinery.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
1500 x 760 x 760 mm1500 x 760 x 760
Distance between Spindle nose & Table top
mm
150 - 190 mm150 - 190
Table size
mm
1700 x 700 mm1700 x 700
Table loading capacity
kg
1300 kg1300
No. of T-slots
Nos.
5 Nos.5
T Slot size x Pitch
mm
18 x 125 mm18 x 125
Spindle bore taper
Type
BT 40 Type BT 40
Spindle speed
rpm
12000 rpm12000
Spindle Motor Power (Cont. /Int.)
kW
11 / 18.5 kW11 / 18.5
Max. Spindle Torque
Nm
52.5 / 118 Nm52.5 / 118
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
24 / 30 / 24 m/min24 / 30 / 24
Cutting Feed rate
m/min
10 m/min10
No. of tools
Nos.
24 Nos.24
Tool shank configuration
type
BT 40 typeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. Tool length
mm
300 mm300
Max. Tool weight
kg
8 kg8
Tool change time (tool to tool)
sec
2.2 sec2.2
Length x Width x Height
mm
3620 x 3530 x 3125 mm3620 x 3530 x 3125
Weight
kg
10000 kg10000
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.005 mm±0.005
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
