MILLING
JV 200

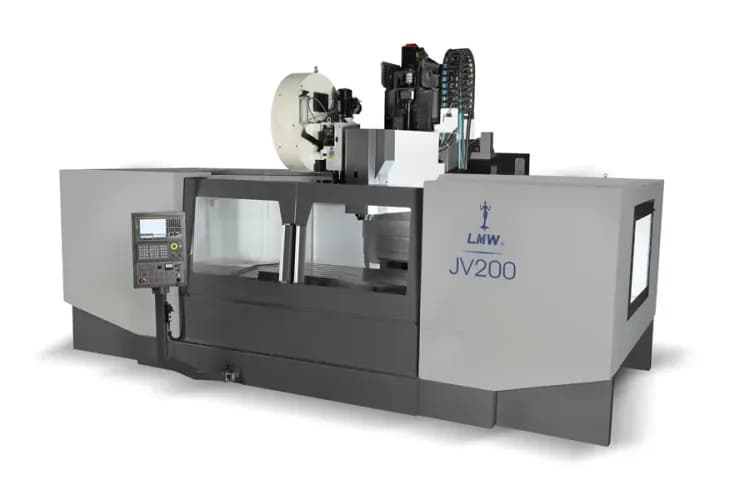

JV 200 is a heavy-duty Vertical Machining Center designed for machining large and heavy components with high stability. With axis strokes of 2000 × 900 × 800 mm, a 2100 × 800 mm table, and a 4000 rpm spindle, it offers high capacity for demanding machining applications. It is suitable for Aerospace, Railway, Oil& Gas, Foundry & Forging, Die Mould
Specifications
Description
Unit
Type
X/Y/Z - Axis
mm
2000 x 900 x 800 mm2000 x 900 x 800
Distance between Spindle nose & Table top
mm
150-950 mm150-950
Table Size
mm
2100 X 800 mm2100 X 800
Table Loading Capacity
kg
2500 kg2500
T Slot size x Pitch
mm
18 x 115 mm18 x 115
No. of T-slots
Nos.
7 Nos.7
Spindle Speed
rpm
4000 rpm4000
Spindle Bore Taper
Type
BT 50 TypeBT 50
Spindle Motor Power (Cont. /Int.)
kW
15 / 18.5 kW15 / 18.5
Max. Spindle Torque
Nm
107.4 / 177 Nm107.4 / 177
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
20 / 20 / 15 m/min20 / 20 / 15
Cutting feed rate
m/min
10 m/min10
No. of tools
Nos.
20 Nos.20
Tool Shank Configration
Type
BT 50 TypeBT 50
Max. tool diameter with adjacent tool
mm
Ø 130 mmØ 130
Max. tool diameter without adjacent tool
mm
Ø 200 mmØ 200
Max. Tool length
mm
400 mm400
Max. Tool weight
kg
20 kg20
Tool change time (tool to tool)
sec
4 sec4
Length x Width x Height
mm
5420 x 4700 x 3500 mm5420 x 4700 x 3500
Weight
kg
17000 kg17000
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.005 mm±0.005
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
