JV 84

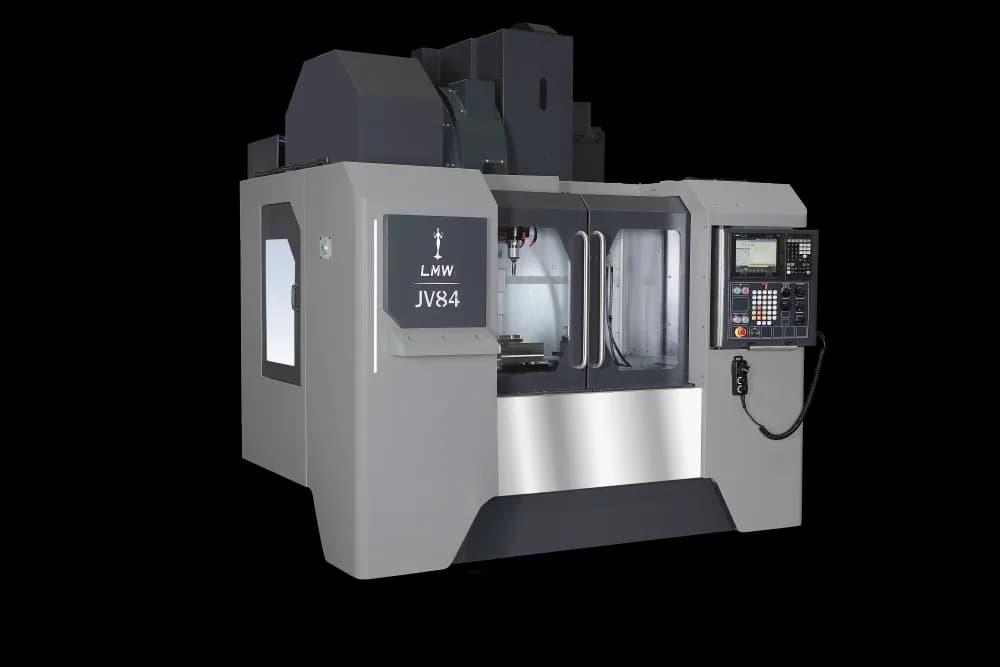

JV 84 is a high productive Vertical Machining Center (VMC). With axis strokes of 800 × 500 × 500 mm, a 1050 × 500 mm table, and a 6000 rpm spindle, it provides stable cutting for demanding applications. JV 84 is well-suited for Automobile, Foundry, Agri & Earthmovers, Pump & Valve industries.
Specifications
Description
Unit
Type
X/Y/Z - Axis
mm
800 x 500 x 500 mm800 x 500 x 500
Distance between Spindle nose & Table top
mm
124 - 624 mm124 - 624
Table Size
mm
1050 x 500 mm1050 x 500
Table loading capacity
kg
500 kg500
No. of T-slots
Nos.
5 Nos.5
T Slot size x Pitch
mm
18 x 100 mm18 x 100
Spindle speed
rpm
6000 rpm6000
Spindle Bore Taper
Type
BT 40 TypeBT 40
Spindle Motor Power (Cont. /Int.)
kW
11 / 15 kW11 / 15
Max. Spindle Torque
Nm
48 / 93 Nm48 / 93
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
36 / 36 / 36 m/min36 / 36 / 36
Guideways on all axes
Type
LM guideways TypeLM guideways
Ballscrew Size X,Y & Z Axes (DiaxPitch)
mm
Ø40 X 12 mmØ40 X 12
Cutting Feed rate
m/min
10 m/min10
No. of tools
nos.
24 nos.24
Max. Tool length
mm
250 mm250
Tool change time (tool to tool)
sec
2.2 sec2.2
Tool shank configuration
type
BT 40 typeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. Tool weight
kg
8 kg8
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
Length x Width x Height
mm
2360 x 3150 x 2830 mm2360 x 3150 x 2830
Weight
kg
4300 kg4300
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
