MILLING
JVM 60

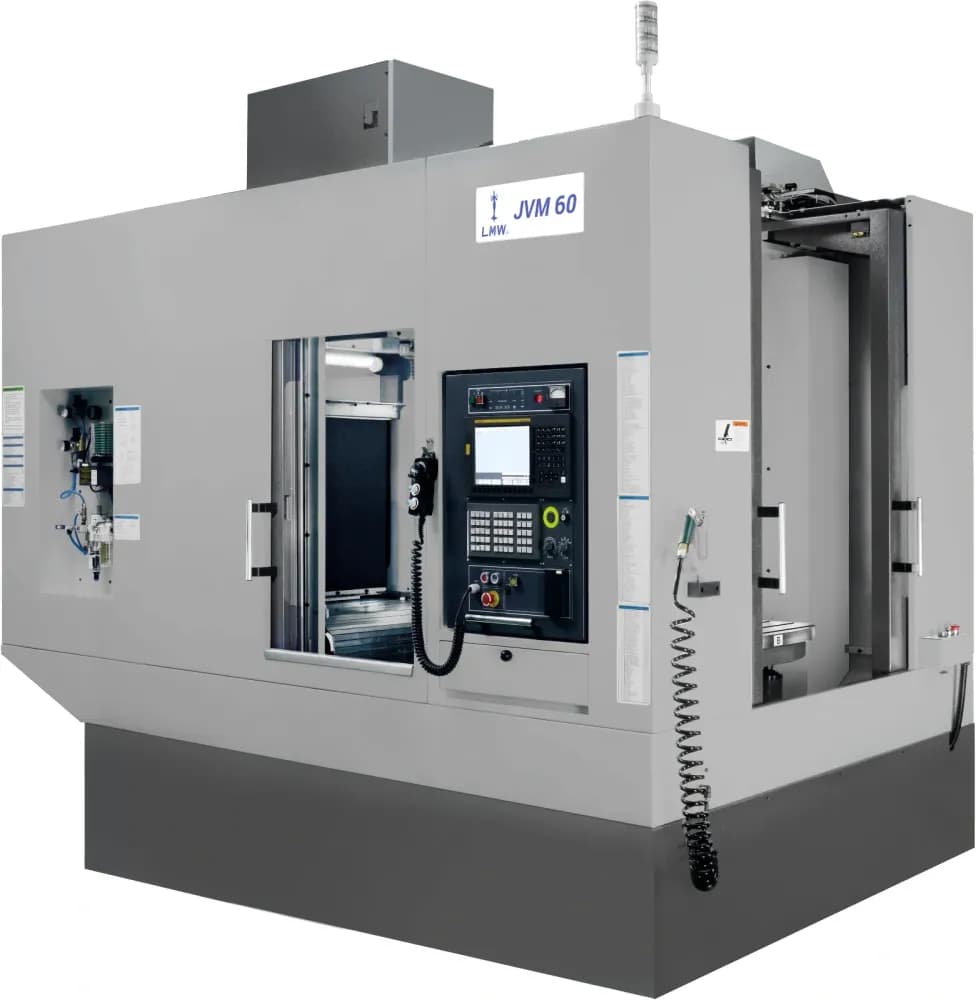

JVM 60 is a high-productive Moving Column Vertical Machining Center designed for efficient and continuous machining. With axis strokes of 640 × 460 × 600 mm and a 700 × 500 mm table, it offers stable and precise milling performance. Equipped with a Rotary Automatic Pallet Changer (RAPC) with 350 kg pallet loading capacity, it helps reduce setup time and improve productivity. It is suitable for Foundry & Forging, Oil & Gas, Pump & Valve.
Specifications
Description
Unit
Type
X/Y/Z - Axis
mm
640 x 460 x 600 mm640 x 460 x 600
Distance between Spindle nose & Table top
mm
200 – 800 mm200 – 800
Pallet size
mm
700 x 500 mm700 x 500
Pallet loading capacity
kg
2 x 350 kg2 x 350
T Slot size x Pitch
mm
18 x 100 mm18 x 100
No. of T-slots
Nos.
2 Nos.2
Pallet indexing time
sec
8 sec8
Spindle speed
rpm
6500 rpm6500
Spindle Bore Taper
Type
BT 40 TypeBT 40
Spindle Motor Power (Cont. /Int.)
kW
7.5 / 11 kW7.5 / 11
Max. Spindle Torque
Nm
54 / 105 Nm54 / 105
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
30 x 30 x 30 m/min30 x 30 x 30
Cutting feed rate
m/min
10 m/min10
No. of tools
Nos.
20 Nos.20
Tool Shank Configration
Type
BT 40 TypeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 150 mmØ 150
Max. Tool length
mm
300 mm300
Max. Tool weight
kg
7 kg7
Tool change time (tool to tool)
sec
3 sec3
Length x Width x Height
mm
3320 x 2380 x 3050 mm3320 x 2380 x 3050
Weight
kg
6500 kg6500
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
