TURNING

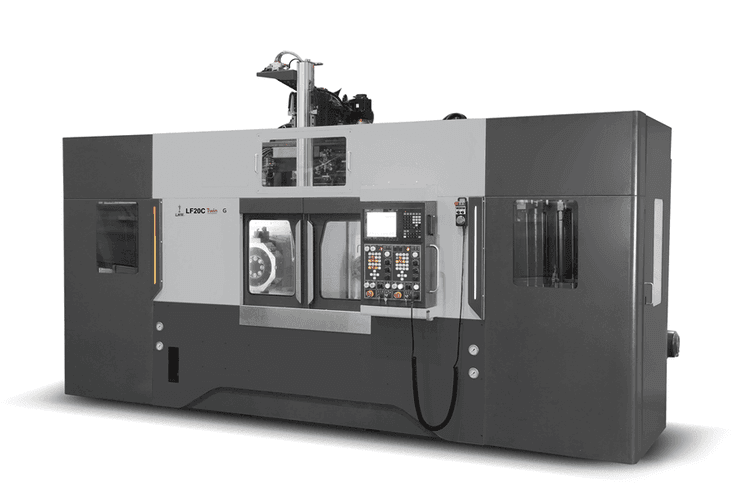

LL20TTC
Explore the precision and efficiency of LMW LF Series Twin G CNC Turning Machines. Experience advanced CNC turning capabilities for your projects.
Specifications
Description
Unit
Type
Max. Swing over cover
mm
325 mm325
Max. Turning Diameter
mm
240 mm240
Max. Turning Length
mm
117 mm117
Chuck Size
mm
210 mm210
Spindle Nose
Type
A2-6 TypeA2-6
Max. Spindle speed
rpm
4000 rpm4000
Motor Power (cont. / Int)
kW
7.5/11 kW7.5/11
Motor Torque (Cont/Int)
Nm
71 / 140 Nm71 / 140
Hole Through Spindle
mm
61 mm61
No. of Stations
Nos.
8 Nos.8
Tool Shank size
mm
25 x 25 mm25 x 25
Max. Boring Bar Diameter
mm
40 mm40
Turret Indexing Time
sec
1 sec1
Cross travel (X - Axis)
mm
200 mm200
Longitudinal travel (Z - Axis)
mm
160 mm160
Rapid Traverse, X & Z Axes
m/min
24 m/min24
Weight
kg
8000 kg8000
Front x Side x Height
mm
3481 x 4640 x 2073 mm3481 x 4640 x 2073
Controller
Type
Mitsubishi TypeMitsubishi
Max. work weight
Kg
3 x 2 Kg3 x 2
Max. work size
mm
Ø100 x 32 mmØ100 x 32
Max. Rapid traverse (GX / GY / GZ)
m/min
100 / 60 / 100 m/min100 / 60 / 100
Max. stroke (GX / GY / GZ)
mm
4000 / 150 / 1100 mm4000 / 150 / 1100
