LL20T L10

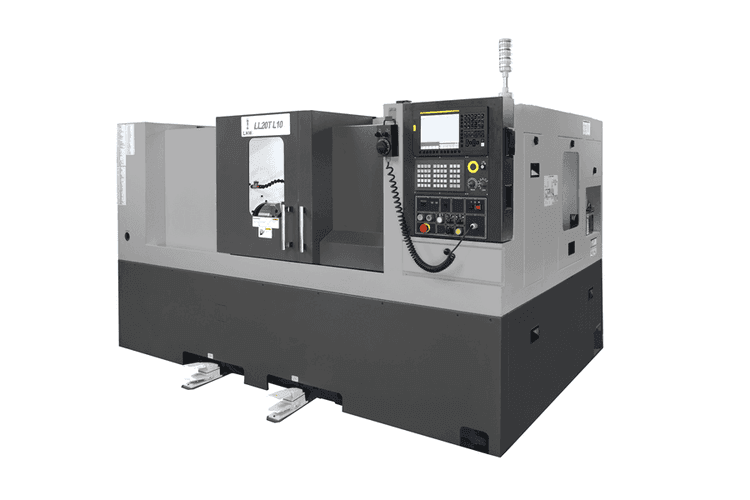

LL20T L10 is designed for machining longer components. With a 1040 mm turning length, 380 mm turning diameter, and 8” chuck size, it offers extended capacity for demanding production requirements.
Specifications
Description
Unit
Type
Swing over bed
mm
510 mm510
Max. Turning Diameter
mm
380 mm380
Max.Turning Length
mm
1040 mm1040
Admit Between Centres
mm
1175 mm1175
Chuck Size
mm
210 mm210
Spindle nose
type
A2-6 typeA2-6
Hole through Spindle
Mm
61 Mm61
Spindle Speed
rpm
3500 rpm3500
Motor Power (cont. / Int)
kw
11 / 15 / (15/18.5) kw11 / 15 / (15/18.5)
Motor Torque (Cont/Int)
Nm
234 / 382 (244 / 403) Nm234 / 382 (244 / 403)
Cross Travel (X - Axis)
mm
215 mm215
Longitudinal Travel (Z- Axis)
mm
1100 mm1100
Rapid Traverse, X and Z Axes
m/min
30 / 36 m/min30 / 36
Guideways on All Axes
Type
LM Guideways TypeLM Guideways
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
25 x 25 mm25 x 25
Max. Boring Bar Diameter
mm
40 mm40
Turret Indexing
Type
Bi Directional TypeBi Directional
Turret Indexing Time
Sec
<1 Sec<1
Quill Diameter
mm
85 mm85
Quill stroke
mm
100 mm100
Quill taper
Type
MT-5 TypeMT-5
Front x Side x Height
mm
3055 x 1695 x 1920 mm3055 x 1695 x 1920
Weight
kg
4200 kg4200
Controller
Type
Fanuc / Siemens TypeFanuc / Siemens
