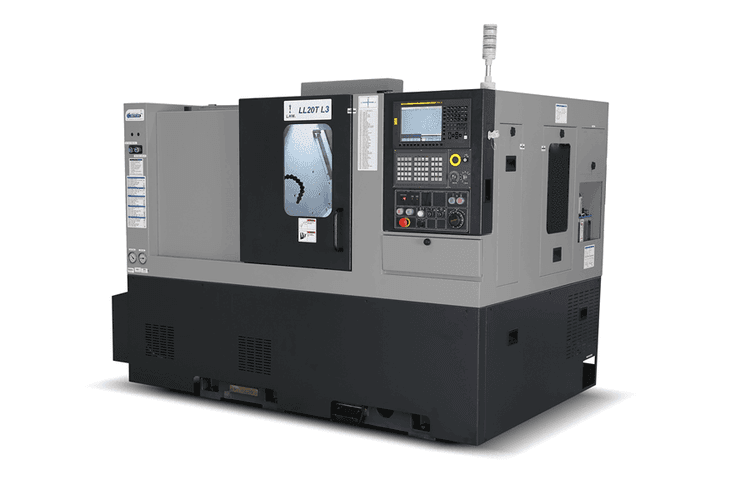

LL20T L3
LL20T L3 is a robust CNC turning center designed to meet the machining needs of diverse industries such as Automobile, Agri & Earthmovers, Pump & Valve. With a 310 mm turning length, 380 mm turning diameter, and 8” chuck size, it is ideal for medium-sized components. Built for stable performance and consistent productivity, it ensures reliable machining across varied applications.
Specifications
Description
Unit
Type
Swing over bed
mm
510 mm510
Chuck Size
mm
210 mm210
Max. Turning Diameter
mm
380 mm380
Max.Turning Length
mm
310 mm310
Admit Between Centres
mm
440 mm440
Spindle nose
Type
A2-6 TypeA2-6
Hole through Spindle
mm
61 mm61
Max. Spindle speed
rpm
3500 rpm3500
Motor Power (cont. / Int)
kW
11 / 15 / (15/18.5) kW11 / 15 / (15/18.5)
Motor Torque (Cont/Int)
Nm
234 / 382 (244 / 403) Nm234 / 382 (244 / 403)
Cross Travel (X - Axis)
mm
215 mm215
Longitudinal Travel (Z- Axis)
mm
370 mm370
Rapid Traverse, X and Z Axes
m/min
30 / 36 m/min30 / 36
Guideways on All Axes
Type
LM Guideways TypeLM Guideways
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
25 x 25 mm25 x 25
Max. Boring Bar Diameter
mm
40 mm40
Turret Indexing
Type
Bi - directional TypeBi - directional
Turret Indexing Time
Sec
<1 Sec<1
Quill Diameter
mm
85 mm85
Quill Stroke
mm
100 mm100
Quill Taper
Type
MT-5 TypeMT-5
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
Front x Side x Height
mm
2315 x 1650 x 1920 mm2315 x 1650 x 1920
Weight
kg
3500 kg3500
