LL20T L5

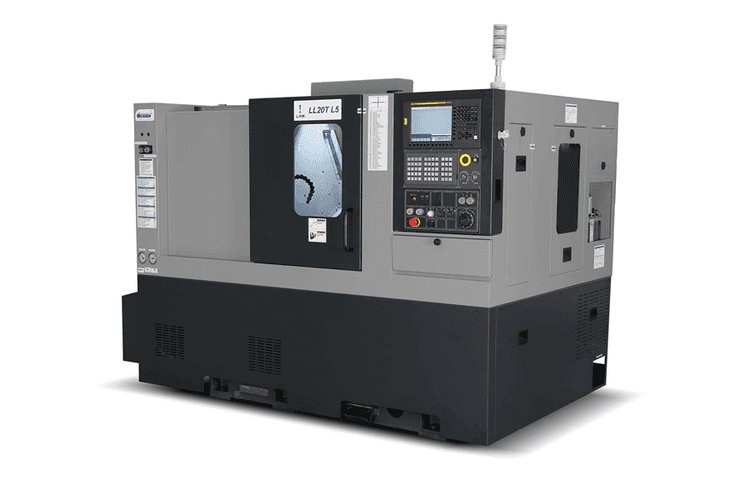

LL20T L5 is engineered for precision machining of medium and long components across automobile, agriculture & earthmover, pump, valve, and general engineering sectors. Featuring a 500 mm turning length, 380 mm turning diameter, and 8” chuck, it offers the right balance of capacity and stability. Designed for continuous production, it delivers reliable accuracy and efficient performance for demanding shop floors.
Specifications
Description
Unit
Type
Swing over bed
mm
510 mm510
Chuck Size
mm
210 mm210
Max. Turning Diameter
mm
380 mm380
Max.Turning Length
mm
500 mm500
Admit Between Centres
mm
625 mm625
Spindle nose
Type
A2-6 TypeA2-6
Hole through Spindle
mm
61 mm61
Max. Spindle speed
rpm
3500 rpm3500
Motor Power (cont. / Int)
kW
11 / 15 / (15/18.5) kW11 / 15 / (15/18.5)
Motor Torque (Cont/Int)
Nm
234 / 382 (244 / 403) Nm234 / 382 (244 / 403)
Cross Travel (X - Axis)
mm
215 mm215
Longitudinal Travel (Z- Axis)
mm
560 mm560
Rapid Traverse, X and Z Axes
m/min
30 / 36 m/min30 / 36
Guideways on All Axes
Type
LM Guideways TypeLM Guideways
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
25 x 25 mm25 x 25
Turret Indexing
Type
Bi - directional TypeBi - directional
Turret Indexing Time
Sec
<1 Sec<1
Max. Boring Bar Diameter
mm
40 mm40
Quill Diameter
mm
85 mm85
Quill Stroke
mm
100 mm100
Quill Taper
Type
MT-5 TypeMT-5
Front x Side x Height
mm
2505 x 1650 x 1920 mm2505 x 1650 x 1920
Weight
kg
3500 kg3500
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
