LL30T L10

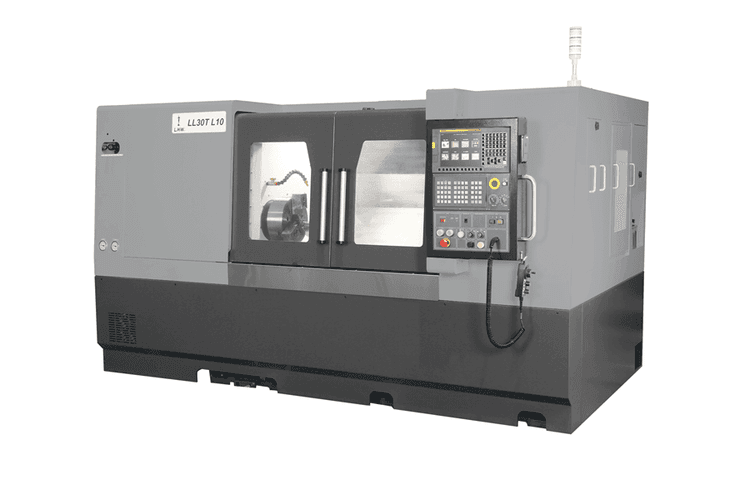

LL30T L10 is engineered for machining larger and longer components with stability and precision. With a 960 mm turning length, 420 mm turning diameter, and 12” chuck size, it offers higher capacity for demanding production needs.
Specifications
Description
Unit
Type
Swing over bed
mm
610 mm610
Max. Turning Diameter
mm
400 mm400
Max.Turning Length
mm
960 mm960
Admit Between Centres
mm
1100 mm1100
Chuck Size
mm
304 mm304
Spindle nose
type
A2-8 typeA2-8
Hole through Spindle
mm
77 mm77
Max. Spindle speed
rpm
3000 rpm3000
Motor Power (cont. / Int)
kw
15 / 18.5 kw15 / 18.5
Motor Torque (Cont/Int)
Nm
- Nm-
Cross Travel X - Axis
mm
228 mm228
Longitudinal Travel Z - Axis
mm
1050 mm1050
Rapid Traverse, X and Z Axes
m/min
30/36 m/min30/36
Guideways on All Axes
Type
LM Guideways TypeLM Guideways
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
25 x 25 mm25 x 25
Turret Indexing
Type
Bi - directional TypeBi - directional
Turret Indexing Time
Sec
<1.2 Sec<1.2
Maximum Boring Bar Diameter
mm
50 mm50
Quill Diameter
mm
85 mm85
Quill stroke
mm
117 mm117
Quill taper
type
MT-5 typeMT-5
Front x Side x Height
mm
3230 x 1900 x 2085 mm3230 x 1900 x 2085
Weight
kg
5500 kg5500
Controller
Type
Fanuc / Siemens TypeFanuc / Siemens
