TURNING

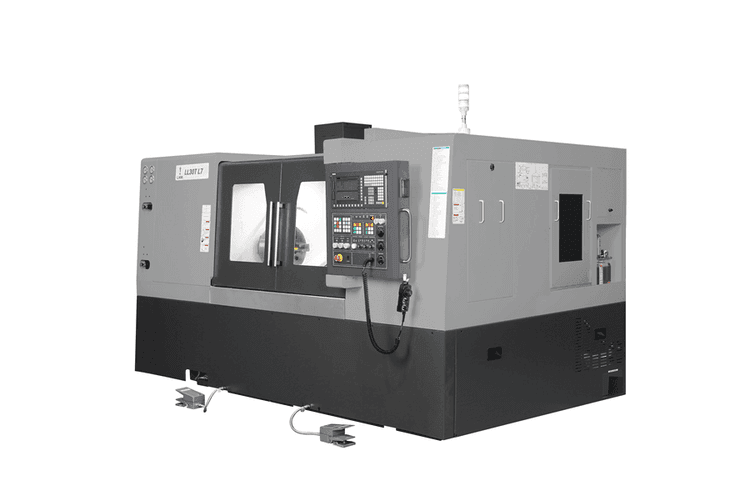

LL30T L7
LL30T L7 is designed for machining larger components. With a 611 mm turning length, 420 mm turning diameter, and 12” chuck size, it is suitable for medium to large precision parts. Powered by an 18.5/15 kW spindle motor, it delivers strong cutting performance for demanding applications.
Specifications
Description
Unit
Type
Swing over bed
mm
610 mm610
Max. Turning Diameter
mm
400 mm400
Max.Turning Length
mm
611 mm611
Admit Between Centres
mm
782 mm782
Chuck Size
mm
304 mm304
Spindle nose
type
A2-8 typeA2-8
Hole through Spindle
mm
77 mm77
Max. Spindle speed
rpm
3000 rpm3000
Motor Power (cont. / Int)
kW
15 / 18.5 kW15 / 18.5
Motor Torque (Cont/Int)
Nm
- Nm-
Cross Travel X - Axis
mm
228 mm228
Longitudinal Travel Z - Axis
mm
700 mm700
Rapid Traverse, X and Z Axes
m/min
30 / 36 m/min30 / 36
Guideways on All Axes
Type
LM Guideways TypeLM Guideways
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
25 x 25 mm25 x 25
Turret Indexing
Type
Bi - directional TypeBi - directional
Turret Indexing Time
Sec
<1.2 Sec<1.2
Max. Boring Bar Diameter
mm
50 mm50
Quill Diameter
mm
85 mm85
Quill stroke
mm
117 mm117
Quill taper
type
MT-5 typeMT-5
Controller
mm
Fanuc / Siemens mmFanuc / Siemens
Front x Side x Height
mm
2915 x 1810 x 2085 mm2915 x 1810 x 2085
Weight
kg
5000 kg5000
