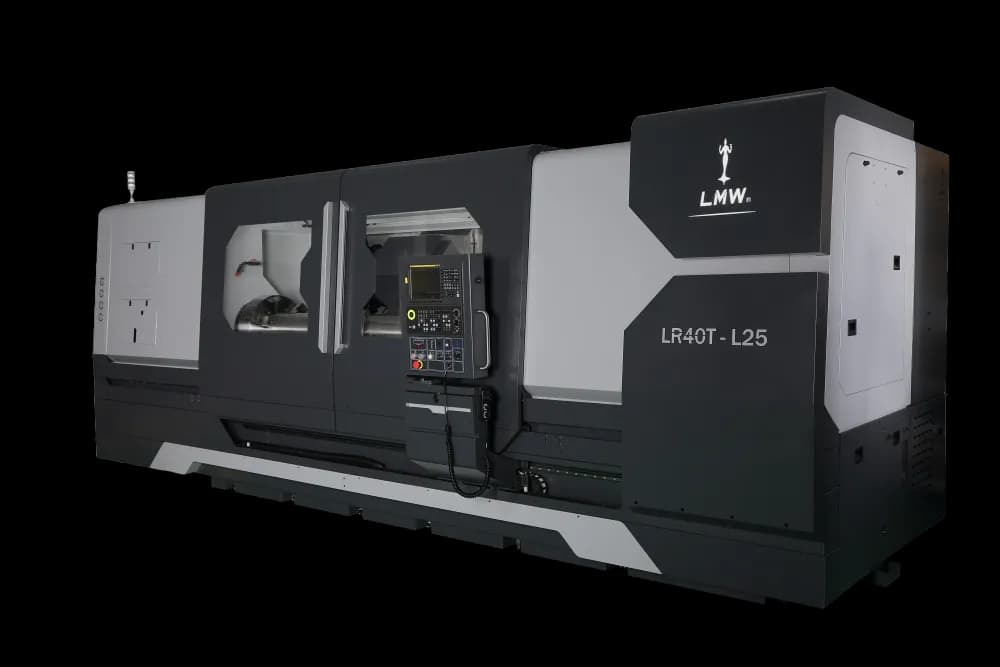

LR40T L25
LR40T L25 is designed for machining large and extended components with high stability and precision. With a 2500 mm turning length, 580 mm turning diameter, and 16” chuck size, it offers greater capacity for demanding industrial applications.
Specifications
Description
Unit
Type
Swing over bed
mm
745 mm745
Max. Turning Length
mm
2320 mm2320
Max. Turning Diameter
mm
550 mm550
Chuck Size
mm
533 mm533
Spindle Nose
Type
A2-15 TypeA2-15
Hole Through Spindle
mm
181 mm181
Max. Spindle speed
rpm
1250 rpm1250
Motor Power(cont./ Int)
kW
18.5 / 22 kW18.5 / 22
Cross Travel (X - Axis)
mm
335 mm335
Longitudinal Travel (Z - Axies)
mm
2490 mm2490
Rapid Traverse, X and Z Axes
m/min
24/10 m/min24/10
No of Stations
Nos.
12 Nos.12
Tool Shank Size
mm
32 * 32 mm32 * 32
Max. Boring Bar Diameter
mm
60 mm60
Turret Indexing
Type
Bi - directional TypeBi - directional
Turret Indexing Time
Sec
<1 Sec<1
Quill Diameter
mm
120 mm120
Quill Stroke
mm
120 mm120
Quill Taper
Type
MT-6 TypeMT-6
Controller
Type
Fanuc TypeFanuc
