TURNING

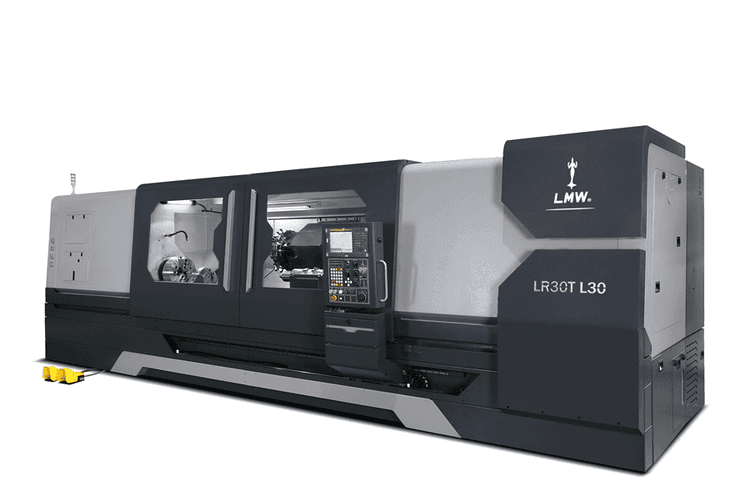

LR30T L30
LR30T L30 is designed for machining large components with high rigidity and stability. With a 3000 mm turning length, 550 mm turning diameter, and 16” chuck size, it offers extended capacity for demanding heavy-duty applications.
Specifications
Description
Unit
Type
Swing Over bed
mm
760 mm760
Admit Between Centres
mm
3175 mm3175
Max. Turning Length
mm
3000 mm3000
Max. Turning Diameter
mm
550 mm550
Chuck Size
mm
381 mm381
Spindle Nose
Type
A2-11 TypeA2-11
Hole Through Spindle
mm
113 mm113
Max. Spindle Speed
rpm
1900 rpm1900
Motor Power (cont. / Int)
kW
18.5/22 (22/26 - with gearbox option) kW18.5/22 (22/26 - with gearbox option)
Motor Torque (Cont./Int)
Nm
731 (1328 - with gearbox option) Nm731 (1328 - with gearbox option)
Cross Travel (X - Axis)
mm
307 mm307
Longitudinal Travel (Z - Axis)
mm
3120 mm3120
Rapid traverse, X and Z - Axes
m/min
24/12 m/min24/12
No of Stations
Nos.
12 Nos.12
Tool Shank Size
mm
25 x 25 mm25 x 25
Max. Boring Bar Diameter
mm
60 mm60
Turret Indexing
Type
Bi-directional TypeBi-directional
Turret Indexing Time
Sec
1.5 Sec1.5
Quill Diameter
mm
110 mm110
Quill Stroke
mm
110 mm110
Quill Taper
Type
MT-5 TypeMT-5
Front x Side x Height
mm
7300 x 2465 x 2250 mm7300 x 2465 x 2250
Weight
kg
14000 kg14000
Controller
Type
Fanuc TypeFanuc
