TURNING

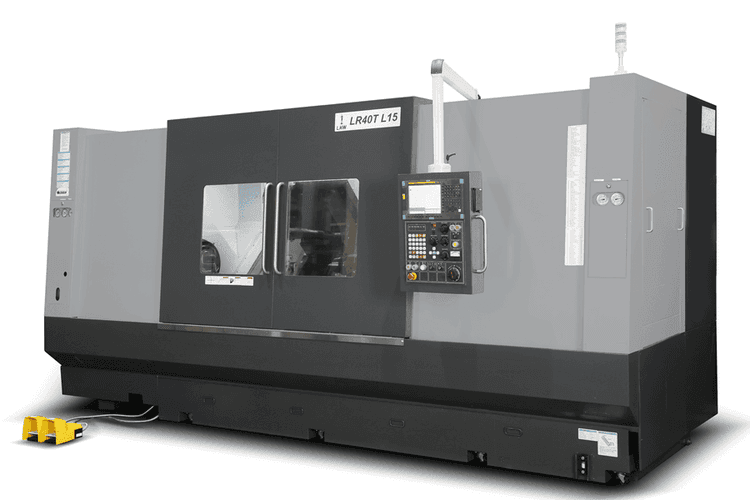

LR40T L15
LR40T L15 is engineered for machining large and heavy components with stability and precision. With a 1500 mm turning length, 600 mm turning diameter, and 16” chuck size, it offers enhanced capacity for heavy engineering applications.
Specifications
Description
Unit
Type
Swing Over bed
mm
760 mm760
Admit Between Centres
mm
1640 mm1640
Max. Turning Length
mm
1500 mm1500
Max. Turning Diameter
mm
600 mm600
Chuck Size
mm
381 mm381
Spindle Nose
Type
A2-11 TypeA2-11
Hole Through Spindle
mm
113 mm113
Max. Spindle speed
rpm
1900 rpm1900
Motor Power (cont./. Int)
kW
18.5/22 kW18.5/22
Inclination of Carriage
Deg
45° to Horizontal Plane Deg45° to Horizontal Plane
Cross Travel (X - Axis)
mm
330 mm330
Longitudinal Travel (Z - Axis)
mm
1620 mm1620
Rapid traverse X and Z - Axes
m/min
20 / 24 m/min20 / 24
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
32 x 32 mm32 x 32
Max. Boring Bar Diameter
mm
60 mm60
Turret Indexing
Type
Bi-directional TypeBi-directional
Turret Indexing Time
Sec
1.5 Sec1.5
Quill Diameter
mm
120 mm120
Quill Stroke
mm
120 mm120
Quill Taper
Type
MT-6 TypeMT-6
Front x Side x Height
mm
4950 x 2475 x 2500 mm4950 x 2475 x 2500
Weight
kg
11000 kg11000
Controller
Type
Fanuc TypeFanuc
