TURNING

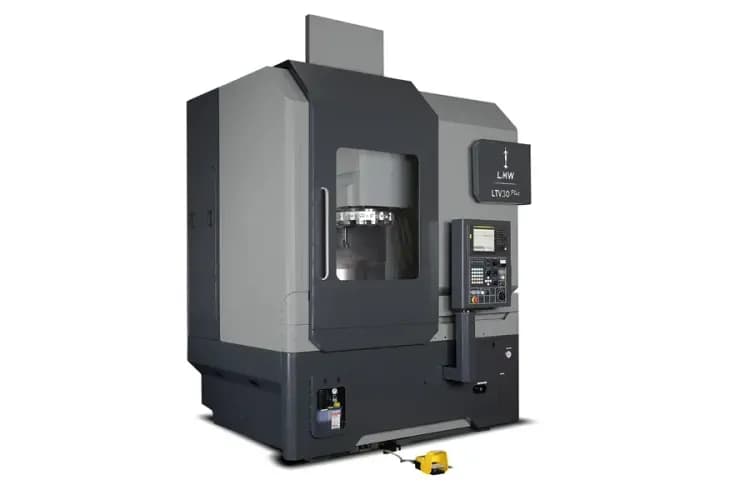

LTV 30 Plus
LTV 30 Plus is a Vertical Turning Center designed for stable and accurate machining of medium to large components. With an 800 mm turning length, 540 mm turning diameter, and 12” chuck size, it offers rigidity and balance during operation. Ideal for Automobile, Pump & Valve, Aerospace, Oil & Gas, and Agri & Earthmover industries.
Specifications
Description
Unit
Type
Swing over Bed
mm
700 mm700
Max. Turning Length
mm
770 mm770
Max. Turning Diameter
mm
540 mm540
Chuck Size
mm
381 mm381
Spindle Nose
Type
A2-8 TypeA2-8
Hole Through Spindle
mm
56 mm56
Max. Spindle speed
rpm
2500 rpm2500
Motor Power (cont./ Int)
kW
15 / 18.5 kW15 / 18.5
Cross Travel (X - Axis)
mm
320 mm320
Longitudinal Travel (Z - Axis)
mm
820 mm820
Rapid Traverse, X and Z Axes
m/min
20/24 m/min20/24
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
32 x 32 mm32 x 32
Max. Boring Bar Diameter
mm
50 mm50
Turret Indexing
Type
Bi-directional TypeBi-directional
Turret Indexing Time
Sec
1.5 Sec1.5
Front x Side x Height
mm
2168 x 3025 x 3085 mm2168 x 3025 x 3085
Weight
kg
7500 kg7500
Controller
Type
Fanuc TypeFanuc
