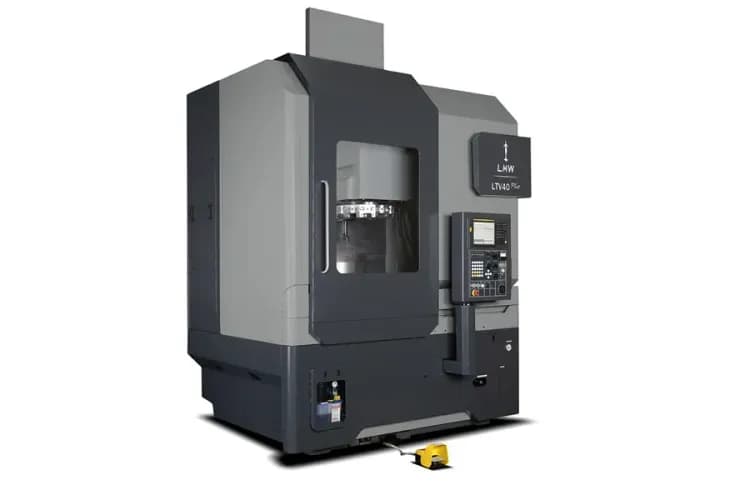

LTV 40 Plus
LTV 40 Plus is a robust Vertical Turning Center built for machining larger diameter components with high stability and precision. With a 750 mm turning length, 640 mm turning diameter, and 18” chuck size, it offers enhanced capacity for demanding applications.
Specifications
Description
Unit
Type
Swing Over bed
mm
800 mm800
Max. Turning Length
mm
750 mm750
Max. Turning Diameter
mm
640 mm640
Chuck Size
mm
530 mm530
Spindle Nose
Type
A2-11 TypeA2-11
Hole Through Spindle
mm
100 mm100
Max. Spindle Speed
rpm
1800 rpm1800
Motor Power (cont. / Int)
kW
18.5 / 22 kW18.5 / 22
Cross Travel (X - Axis)
mm
390 mm390
Longitudinal Travel (Z - Axis)
mm
820 mm820
Rapid traverse X and Z - Axes
m/min
24/24 m/min24/24
No. of Stations
Nos.
12 Nos.12
Tool Shank Size
mm
32 * 32 mm32 * 32
Max. Boring Bar Diameter
mm
50 mm50
Turret Indexing
Type
Bi-directional TypeBi-directional
Turret Indexing Time
Sec
1.5 Sec1.5
Controller
Type
Fanuc TypeFanuc
