TURNING

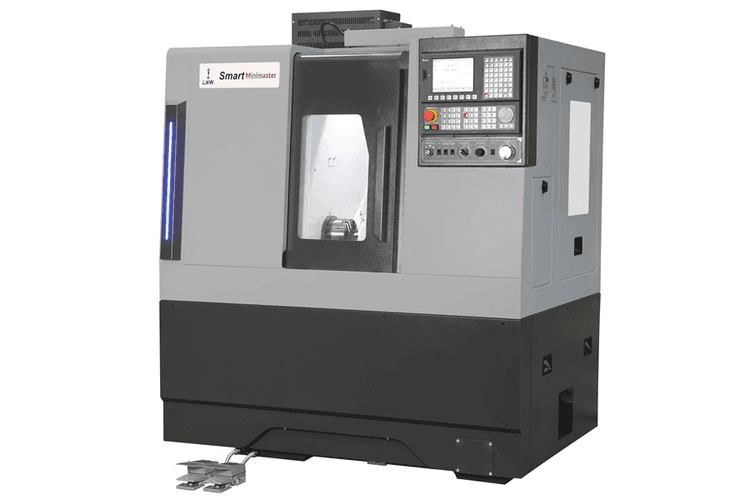

LX20T L5
Explore the capabilities of LMW LX Series LX20T L5 Turning Machines. Enhance your turning operations with precision, speed, and reliability for optimal results.
Specifications
Description
Unit
Type
Swing over bed
mm
510 mm510
Chuck dia, max
mm
210 mm210
Max. Turning Diameter
mm
320 mm320
Max.Turning Length
mm
500 mm500
Admit between Centres
mm
440 mm440
Spindle nose
type
A2-6 typeA2-6
Hole through Spindle
mm
61 mm61
Spindle Speed
rpm
Fanuc - 3000 /Siemens -3500 rpmFanuc - 3000 /Siemens -3500
Spindle motor power -15 min/Cont.(S6-40%/Cont.)
KW
Fanuc - 11 / 7.5/Seimens - 10.5 / 7 KWFanuc - 11 / 7.5/Seimens - 10.5 / 7
Inclination of Carriage
deg
30° to Horizontal Plane deg30° to Horizontal Plane
Cross Travel X - Axis
mm
185 mm185
Longitudinal Travel Z - Axis
mm
370 mm370
Rapid traverse (X/Z) - Axes
m/min
30 / 30 m/min30 / 30
No. of Stations
Nos
8 Nos8
Tool Shank Size
mm
25 x 25 mm25 x 25
Turret Indexing
Type
Bi - directional TypeBi - directional
Turret Indexing Time
Sec
1.0 Sec1.0
Maximum Boring Bar Diameter
mm
40 mm40
Quill dia.
mm
75 mm75
Quill stroke
mm
100 mm100
Quill taper
mm
MT-4 mmMT-4
Controller
type
Fanuc / Siemens typeFanuc / Siemens
Front x Side x Height
mm
2065 x 1650 x 1920 mm2065 x 1650 x 1920
Weight
kg
3200 kg3200
