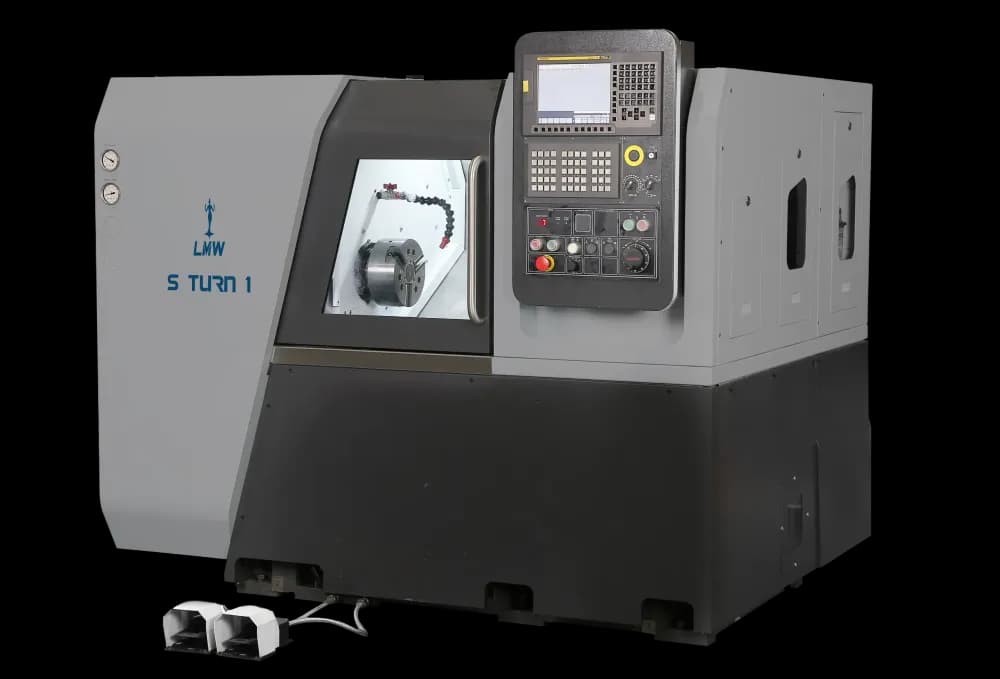

S Turn I
S Turn I is a next-generation compact CNC turning center designed for higher capacity machining with efficient space utilization. With a 300 mm turning length, 320 mm turning diameter, and 8” chuck size, it is suitable for medium-sized precision components. Ideal for Automotive, Pump, Valve, and General engineering industries, S Turn I delivers stable performance, consistent accuracy, and enhanced productivity in a compact footprint.
Specifications
Description
Unit
Type
Swing over Bed
mm
510 mm510
Admit Between Centres
mm
495 mm495
Max. Turning Length
mm
300 mm300
Max. Turning Diameter
mm
320 mm320
Chuck Size
mm
210 mm210
Cross Travel (X - Axis)
mm
185 mm185
Longitudinal Travel (Z- Axis)
mm
367 mm367
Rapid Traverse, X and Z Axes
m/min
30 / 36 m/min30 / 36
Spindle Nose
Type
A2-5 TypeA2-5
Hole Through Spindle
mm
54 mm54
Max. Spindle speed
rpm
4500 rpm4500
Motor Power (cont. / Int)
kW
5.5 / 7.5 kW5.5 / 7.5
Max. Torque on Spindle
Nm
81.7 Nm81.7
Number of Stations
Nos.
8 Nos.8
Tool Shank Size
mm
25 x 25 mm 25 x 25
Max. Boring Bar Diameter
mm
40 mm40
Turret Indexing
Type
Hydraulic TypeHydraulic
Turret Indexing Time
Sec
<1 Sec<1
Quill Diameter
mm
65 mm65
Quill Stroke
mm
80 mm80
Quill Taper
Type
MT-4 TypeMT-4
Tailstock base stroke
mm
324 mm324
Front x Side x Height
mm
1950 x 1650 x 1670 mm1950 x 1650 x 1670
Weight
kg
3000 kg3000
Controller
Type
Fanuc TypeFanuc
