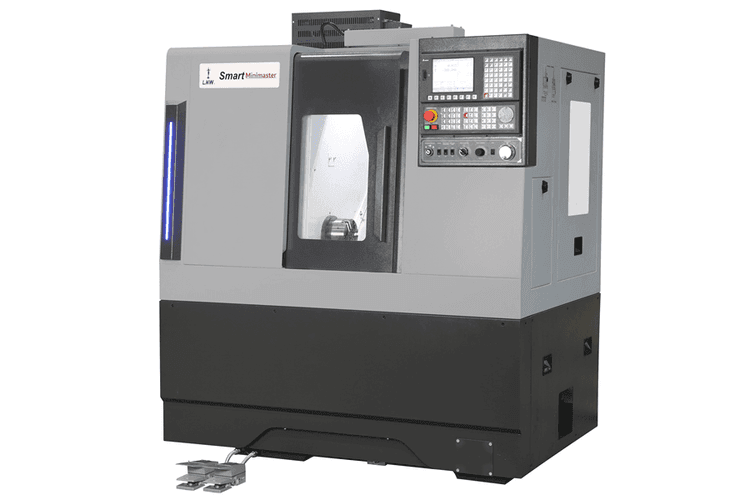

Smart Minimaster
Smart Minimaster is a compact CNC turning center designed for high-volume production of small precision components. With a 200 mm turning length, 150 mm turning diameter, and 5” chuck, it is ideal for space-saving shop floors. Perfect for industries such as Automotive, Bearing, Fitting it delivers consistent accuracy, productivity, and reliable performance in a compact footprint.
Specifications
Description
Unit
Type
Swing over bed
mm
350 mm350
Admit Between Centres
mm
286 mm286
Max. Turning Diameter
mm
150 mm150
Max.Turning Length
mm
200 mm200
Chuck Diameter
inch
5 inch5
Spindle nose
type
Flat (Dia: 110) typeFlat (Dia: 110)
Hole through Spindle
Mm
36 Mm36
Max. Spindle speed
rpm
6000 rpm6000
Power
Kw
3.7 / 5.5 Kw3.7 / 5.5
Inclination of Carriage
Deg
45°to Horizontal Plane Deg45°to Horizontal Plane
Cross Travel (X - Axis)
mm
105 mm105
Longitudinal Travel (Z- Axis)
mm
250 mm250
Rapid Traverse, X and Z Axes
m/min
30 / 30 m/min30 / 30
Number of Stations
Nos
8 Nos8
Tool Shank Size
mm
20 x 20 mm20 x 20
Turret Indexing
Type
Hydraulic TypeHydraulic
Turret Indexing Time
Sec
Less than 0.1 SecLess than 0.1
Quill Stroke
mm
60 mm60
Quill Taper
mm
MT-3 mmMT-3
Tailstock basestroke
mm
130 mm130
Quill Diameter
mm
40 mm40
Controller
Type
Fanuc / Mitsubishi TypeFanuc / Mitsubishi
Front x Side x Height
mm
1575x1126x1700 mm1575x1126x1700
Weight
kg
1800 kg1800
