TURNING

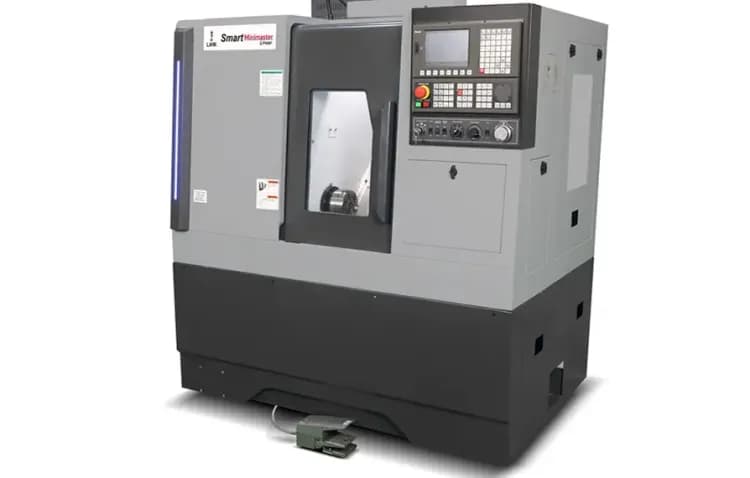

Smart Minimaster Linear
Smart Minimaster Linear is a compact CNC turning center designed for high-speed and high-volume production of small precision parts. With a 200 mm turning length, 130 mm turning diameter, and 5” chuck, it is ideal for space-saving shop floors. Equipped with a linear turret for quick tool indexing and improve productivity.
- •Linear guideways for enhanced precision
- •Improved stability at high speeds
- •Compact footprint design
- •High-speed machining capabilities
Specifications
Description
Unit
Type
Swing over bed
mm
350 mm350
Admit Between Centres
mm
- mm-
Max. Turning Length
mm
200 mm200
Max. Turning Diameter
mm
130 mm130
Chuck Size
mm
135 mm135
Spindle Nose
Type
Flat (Dia:110) Type Flat (Dia:110)
Hole Through Spindle
mm
36 mm36
Max. Spindle speed
rpm
6000 rpm6000
Motor Power (cont. / Int)
kW
3.7/5.5 kW3.7/5.5
Inclination of Carriage
Deg
45° to Horizontal Plane Deg45° to Horizontal Plane
Cross Travel (X - Axis)
mm
200 mm200
Longitudinal Travel (Z- Axis)
mm
215 mm215
Rapid Traverse, X and Z Axes
m/min
30 / 30 m/min30 / 30
Number of Stations
Nos.
5 Nos.5
Cross Travel (X - Axis)
mm
20 x 20 mm 20 x 20
Max. Boring Bar Diameter
mm
32 mm32
Turret Indexing
Type
Hydraulic Type Hydraulic
Turret Indexing Time
Sec
- Sec-
Quill Diameter
mm
- mm-
Quill Stroke
mm
- mm-
Quill Taper
Type
- Type-
Tailstock base stroke
mm
- mm-
Front x Side x Height
mm
1575 x 1126 x 1700 mm1575 x 1126 x 1700
Weight
kg
1800 kg1800
Controller
Type
Fanuc / Mitsubishi TypeFanuc / Mitsubishi
