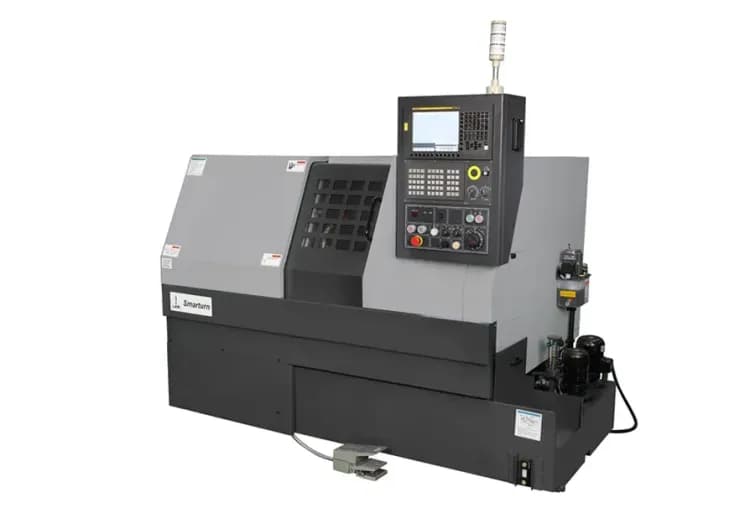

Smarturn
Smarturn is a versatile CNC turning center designed for precision machining and consistent production performance. With a 262 mm turning length, 200 mm turning diameter, and 6” chuck size, it is ideal for medium-sized components across various industries.
Specifications
Description
Unit
Type
Swing over bed
mm
480 mm480
Max. Turning Diameter
mm
200 mm200
Max.Turning Length
mm
262 mm262
Admit Between Centres
mm
345 mm345
Chuck Size
mm
169 mm169
Spindle Nose
Type
Flat (Dia:140) Type Flat (Dia:140)
Hole Through Spindle
mm
53 mm53
Max. Spindle speed
rpm
4500 rpm4500
Motor Power (cont. / Int)
kW
5.5 / 7.5 kW5.5 / 7.5
Inclination of Carriage
Deg
30°to Horizontal Plane Deg30°to Horizontal Plane
Cross Travel X - Axis
mm
105 mm105
Longitudinal Travel (Z- Axis)
mm
320 mm320
RapidRapid Traverse, X and Z Axestraverse (X/Z) - Axes
m/min
20 / 30 m/min20 / 30
Number of Stations
nos.
8 nos.8
Tool Shank Size
mm
20 x 20 mm20 x 20
Max. Boring Bar Diameter
mm
32 mm32
Turret Indexing
Type
Hydraulic TypeHydraulic
Turret Indexing Time
Sec
1 Sec1
Quill Diameter
mm
65 mm65
Quill Stroke
mm
80 mm80
Quill Taper
Type
MT-4 TypeMT-4
Controller
Type
Fanuc / Siemens / Mitsubishi / Delta TypeFanuc / Siemens / Mitsubishi / Delta
Front x Side x Height
mm
2275 x 1640 x 1620 mm2275 x 1640 x 1620
Weight
kg
2300 kg2300
