SPUN YARN SYSTEM

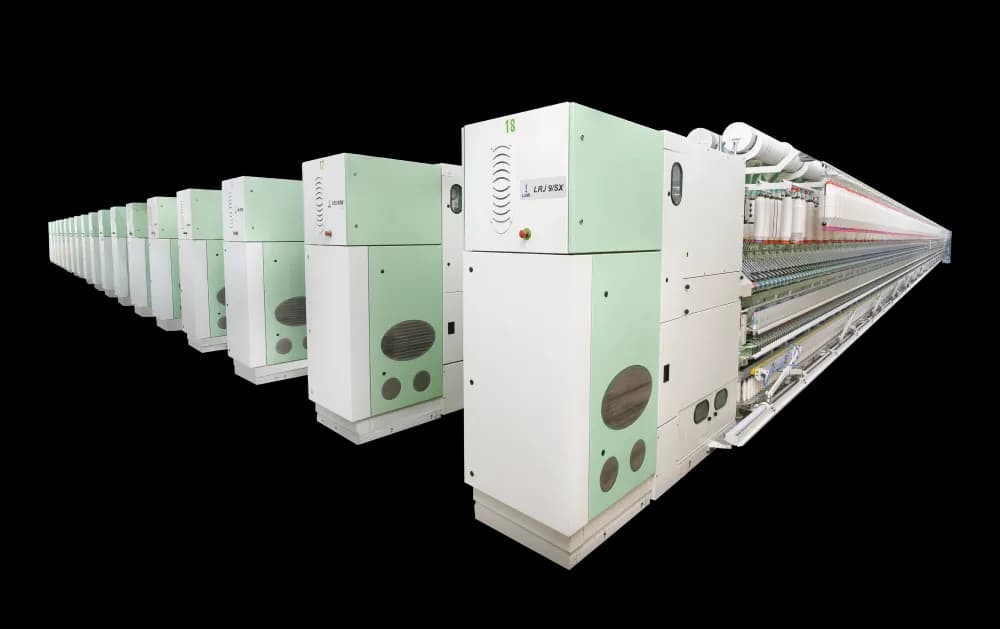

Ring Frame LRJ9 Series

Flexible Ring Spinning for Modern Yarn Needs

A versatile platform supporting compact, fancy, and standard yarn types with high quality, productivity and energy efficiency. The LRJ 9 Series delivers high-quality yarn production through its advanced drafting and energy-efficient drive systems. The FLEXI drive enables smooth changeover of draft and twist, while the high-performance module ensures optimum drafting pressure. The inbuilt Spinpact suction compact system enhances yarn strength with lower hairiness, making the LRJ 9 Series a smart spinning solution for modern mills, ideal for spinning a wide range of yarns with lower running cost and simplified maintenance.

Brochure

Up to 1932 spindles for higher productivity
FLEXI Drafting Drive for smooth draft and twist adjustments
High Performance Drafting Module ensuring consistent drafting pressure

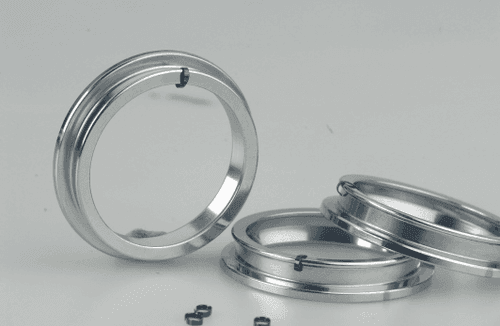

Credo+ Rings for extended ring life and stable spinning

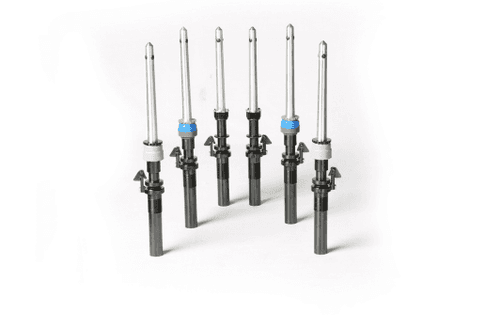

HLLD / HLED spindles designed for low vibration and reduce noise
Energy-efficient machine drive system for reducing power consumption
T-Flex 4Q–2M drive concept for precision control
Inbuilt YBS (Yarn Breakage Sensor) and RSM (Roving Stop Motion) for enhanced performance

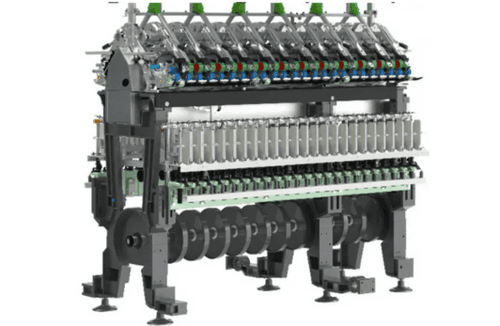

High technological spindle speeds of up to 30000 rpm

The LRJ 9 Ring Frame with inbuilt suction compact spinning arrangement is engineered to deliver superior productivity and yarn quality in modern spinning mills. Designed with a 65 mm gauge (optional), the machine supports high technological spindle speeds of up to 30,000 rpm while ensuring excellent operational stability.

Its robust construction, featuring rigid intermediate frames and spindle beams, combined with precision technological elements and advanced design architecture, ensures consistent performance even under demanding production conditions.

While maintaining high spindle speeds and production levels, the machine is optimized for minimal and efficient energy consumption. This is achieved through advanced technological components such as Credo+ Rings and HLED Spindles with HK RYC, along with IE4 energy-efficient motors and optimized drive systems. Together, these features enhance energy efficiency while maintaining high productivity, reliability, and superior yarn quality.

Ultimate Flexibility in Yarn Spinning

The LRJ9 is a versatile change gearless machine, with a host of features that provides flexibility in terms of producing regular and fancy yarns such as Siro, Slub, Short Slub, Injection Slub, Multicount, Multitwist and Multieffect yarn with higher productivity and quality.
