SPUN YARN SYSTEM
Spinpact (Suction Compact System)
Advanced Compact Technology for Modern Spinning
Advanced compact spinning solution engineered for superior yarn quality and operational excellence to achieve low hairiness, high strength, and enhanced yarn quality. Powered by an efficient suction-based compacting mechanism, Spinpact ensures precise fibre control, improved parallelization, and reduced hairiness, resulting in an stronger and more consistent yarn. Designed to seamlessly integrate with LMW ring frames, it enhances productivity while delivering measurable improvements in yarn performance across applications. With robust engineering, low maintenance requirements, and energy-efficient operation, Spinpact empowers mills to achieve higher value output with every spindle.
- Uni-Compact nozzle made from specially alloyed aluminium for long-lasting performance
- Direct Loading System ensuring uniform fibre flow to the compacting zone
- Unique top-suction arrangement providing consistent suction across all spindles
- Positive-driven perforated apron for uniform and efficient compacting
- Up to 15% increase in yarn tenacity for stronger yarn output
- Up to 30% improvement in Uster Hairiness Index (H) for cleaner, smoother yarn
- 720cc angle compacting technology for optimized drafting performance
- 65mm spindle gauge for space efficiency and stable operation
- 41 mm cradle length ensuring optimum fibre control during drafting

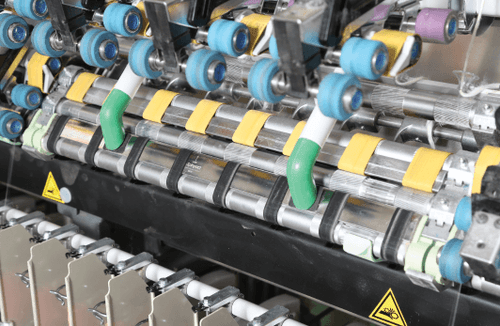

Quality at its Best
The “Spinpact” delivers superior yarn quality with its hi-tech suction compacting technology designed for precision and consistency. The Uni-Compact suction nozzle, made from a special aluminium alloy, efficiently serves 8 spindles, ensuring uniform suction. A special spinning angle enhances fibre control and compacting performance, resulting in stronger yarn with reduced hairiness. With an optimized suction design for lower power consumption, Spinpact offers an energy-efficient solution for modern spinning mills seeking high productivity and consistent, high-quality output.

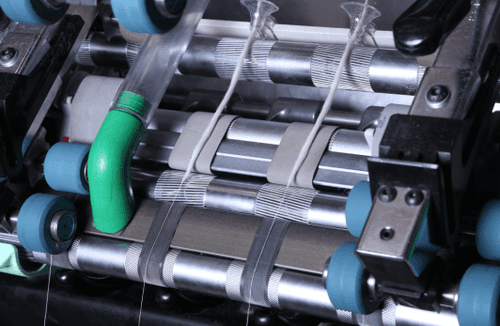

Proven Compacting Principle
The Spinpact is engineered with a proven compacting principle that ensures precise fibre control and superior yarn formation. Fibres are effectively aligned through a specially designed compact slot, enabling smooth fibre flow and uniform structure. The optimized angle in the suction nozzle assists in imparting twist efficiently, ensuring better yarn cohesion and strength. An extended compact slot length positioned closer to the front roller nip enables prolonged and perfect compacting without disturbing the fibre strand. Additionally, the optimum nozzle width guides fibres accurately into the fourth roller (compact roller), ensuring consistent yarn quality.
