CARD SLIVER SYSTEM

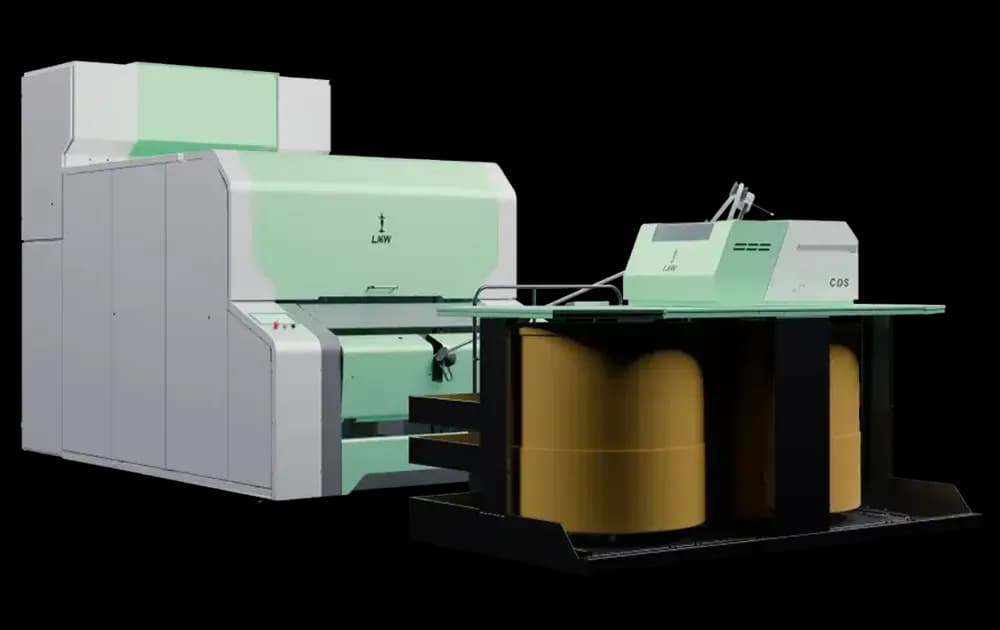

Card LC9S
Precision, Power, Performance…Build to outperform
The Next Gen 1.28m width card for superior fibre control and consistent sliver excellence. Advanced carding technology for next-level spinning quality. The Card LC9S Series with Single / Triple Licker-in is engineered to deliver unmatched carding precision, superior fibre handling, and consistently high sliver quality for demanding spinning environments. With advanced carding geometry, optimized elements, and intelligent cleaning mechanisms, the LC9S ensures exceptional nep removal, improved trash reduction, and enhanced fibre individualization, resulting in stronger, cleaner and more uniform yarn downstream. The LC9S empowers mills to enhance productivity, reduce operational cost, and achieve world-class spinning performance.
- Higher production rate up to 250 kg/h
- Working width of 1280 mm
- Highest Active Carding Area of 1.57 Sq.m. and Active Cylinder Area of 3.17 Sq.m.
- Cast iron Cylinder, Doffer and Licker-in
- Aluminium alloy flats – 109, with working flats – 36.
- Improved Flats with Brass clip (Patented)
- Easy Flat gauge setting
- Three Licker-in Option
- Special profile Arcual Combing segment
- Adjustable Nipping distance in Feed plate

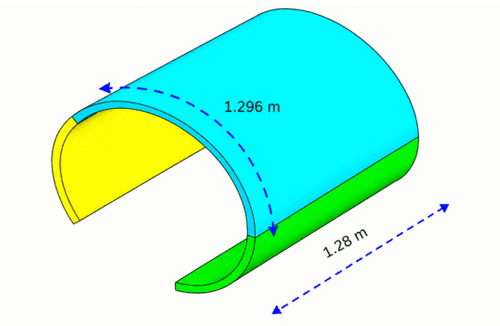

Active Flat Area (AFA)
The Active Flat Area is a measure of actual carding area in the machine. The real carding action takes place between cylinder clothing and revolving flats. In Card LC9S, 110 degrees of cylinder surface is occupied by the revolving flats (36 working flats out of 106 total flats), which in linear terms works out to 1.296 mtrs. over the carding width of 1.28 mtrs. The Active Flat Area (AFA) of 1.65 sq. mtrs. helps to achieve better sliver quality.

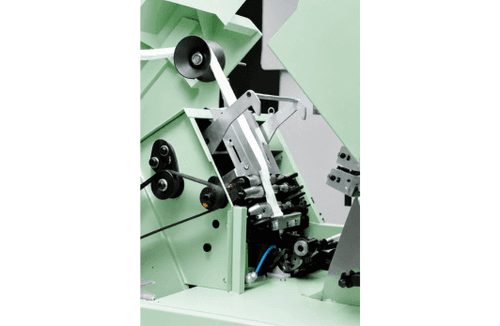

CDS – Card with Drafting System
Card LC636 SX can be offered with Integrated drafting system. The CDS comes with 2 over 2 pneumatically loaded drafting system with servo control. The Intelligent auto levelling system ensures the consistent quality of the sliver delivered from Card. The maximum delivery speed of 700 MPM is possible with CDS. The drafting is equipped with easy adjustment of load for drafting rollers.

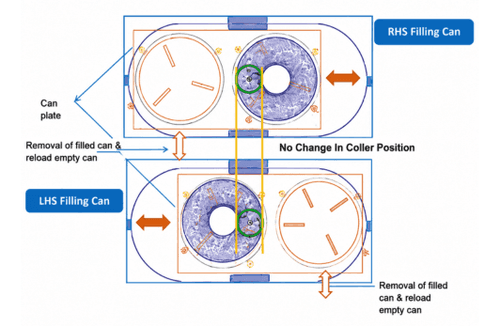

Fix-Fil Can Changer Arrangement
Card LC636 SX can be offered with the delivery can size dia. of 1200mm. The unique concept of can changer is developed to handle bigger can for minimizing space. In the Fix-Fil concept the coiler is strategically positioned for minimal movement of can which helps with reduction in can movement and space.
Other Products
CARD SLIVER SYSTEM

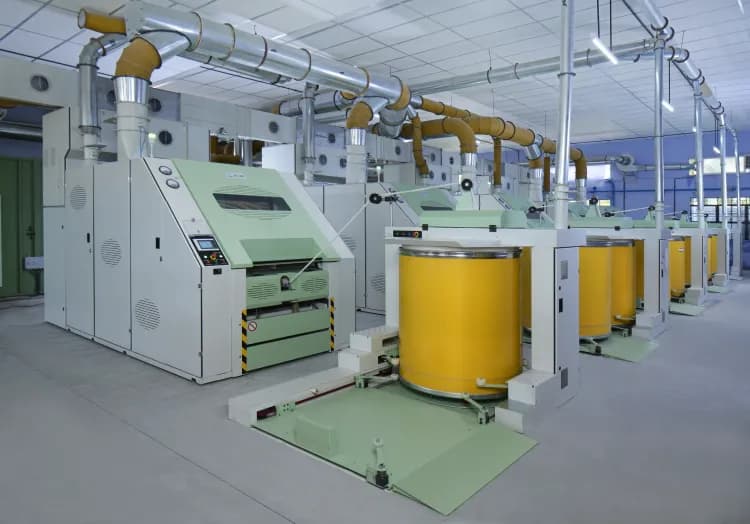

Card LC363 / LC361 S
CARD SLIVER SYSTEM
Card LC636 SX
CARD SLIVER SYSTEM
Bale Plucker LA23/S
CARD SLIVER SYSTEM
Swift Floc LA21
CARD SLIVER SYSTEM
Vario Clean LB9/2
CARD SLIVER SYSTEM
Unimix LB7/4 & LB7/6
CARD SLIVER SYSTEM
Flexiclean LB5/6
CARD SLIVER SYSTEM
Supremoclean LB10/2
CARD SLIVER SYSTEM

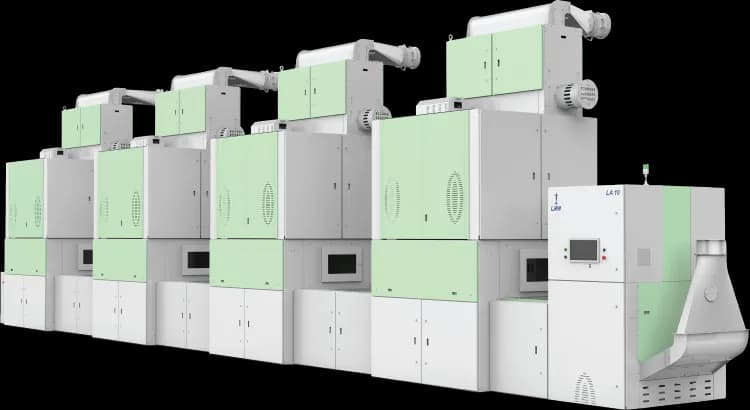

Auto Blend LA10
