MILLING
J2R

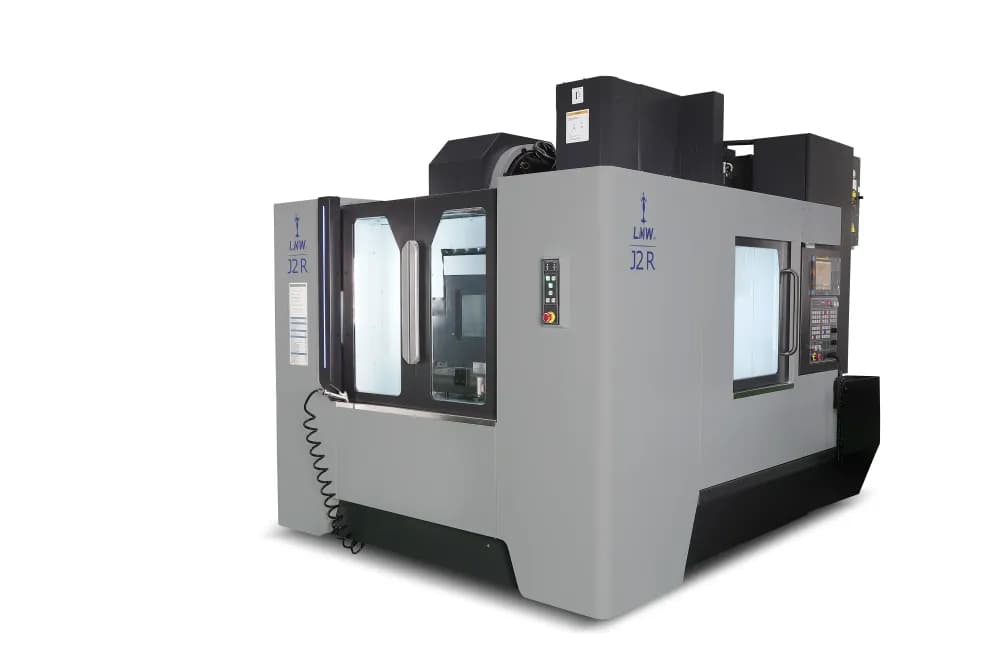

J2R is a versatile Vertical Machining Center (VMC) designed for machining medium to large components with high stability and precision. With axis strokes of 800 × 500 × 500 mm, a 600 × 400 mm table, and spindle speeds up to 10,000 rpm. It comes with Rotary Automatic Pallet Changer (RAPC) to enhance productivity and minimizes setup time for demanding industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
800 x 500 x 500 mm800 x 500 x 500
Distance between Spindle nose & Table top
mm
150 - 650 mm150 - 650
Pallet Size
mm
600 x 400 mm600 x 400
Pallet Loading Capacity
kg
2 x 250 kg2 x 250
Pallet Change Type
Type
Rotary TypeRotary
Pallet Indexing Time
sec
14 sec14
No. of . T-Slots
Nos.
4 Nos.4
T-Slot Size X Pitch
mm
14 x 100 mm14 x 100
Spindle bore taper
Type
BT 40 Type BT 40
Spindle speed
rpm
10000 rpm10000
Spindle Motor Power (Cont. /Int.)
kW
11/15/18.5 (15/18.5) kW11/15/18.5 (15/18.5)
Max. Spindle Torque
Nm
52.5/70/95.5/118 (71.6/95.5) Nm52.5/70/95.5/118 (71.6/95.5)
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
40/40/40 m/min40/40/40
Cutting Feed rate
m/min
10 m/min10
Guideways on all axes
Type
LM guideways TypeLM guideways
Ballscrew Size X,Y & Z Axes (DiaxPitch)
mm
Ø40 X 16 mmØ40 X 16
No. of tools
Nos.
24 (30) Nos.24 (30)
Tool shank configuration
type
BT 40 typeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. Tool length
mm
300 mm300
Max. Tool weight
kg
8 kg8
Tool change time (tool to tool)
sec
1.9 / 2.5* sec1.9 / 2.5*
Length x Width x Height
mm
2345 x 3690 x 2905 mm2345 x 3690 x 2905
Weight
kg
5500 kg5500
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
