MILLING
J6R

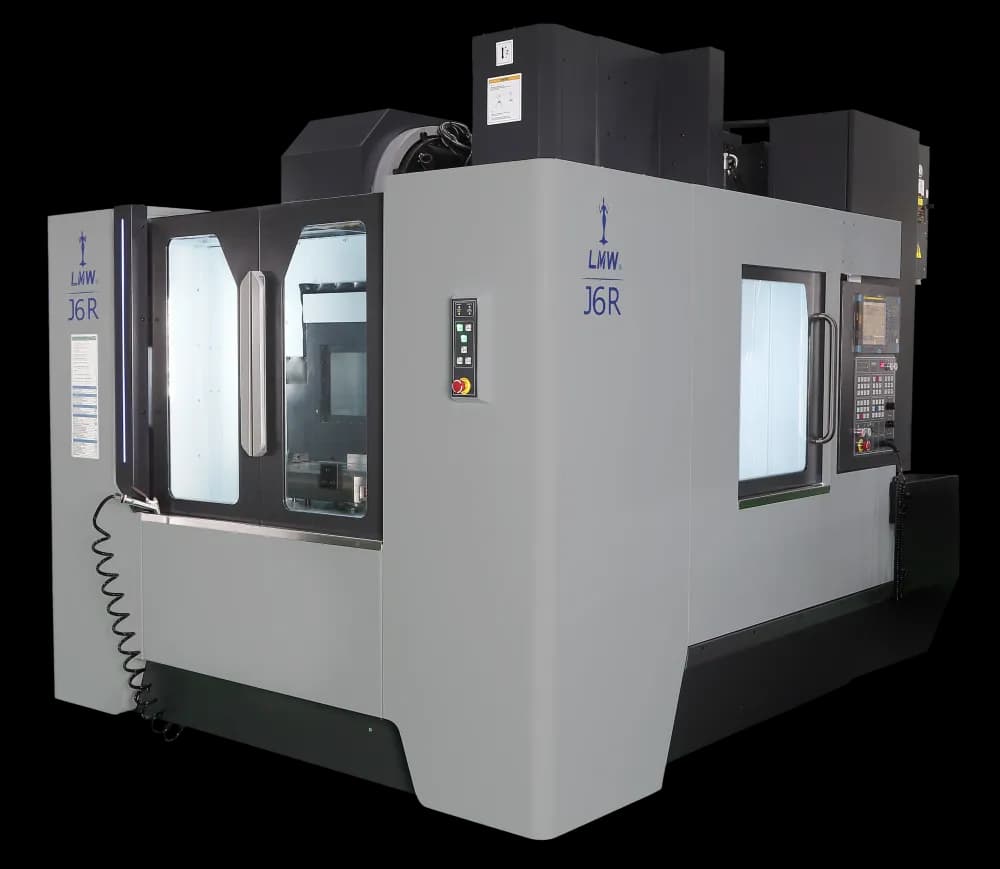

J6R is a versatile Vertical Machining Center (VMC) designed for machining large components with high stability and precision. With axis strokes of 1000 × 600 × 600 mm, a 850 × 500 mm table, and spindle speeds up to 10,000 rpm. It comes with Rotary Automatic Pallet Changer (RAPC) to enhance productivity and minimizes setup time for demanding industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
1000 x 600 x 600 mm1000 x 600 x 600
Distance between Spindle nose & Table top
mm
145 - 745 mm145 - 745
Pallet Size
mm
850 x 500 mm850 x 500
Pallet Loading Capacity
kg
2 x 300 kg2 x 300
Pallet Change Type
Type
Rotary TypeRotary
Pallet Indexing Time
sec
18.5 sec18.5
No. of . T-Slots
Nos.
5 Nos.5
T-Slot Size X Pitch
mm
18 x 100 mm18 x 100
Spindle bore taper
Type
BT 40 Type BT 40
Spindle speed
rpm
10000 rpm10000
Spindle Motor Power (Cont. /Int.)
kW
11/15/18.5 (15/18.5) kW11/15/18.5 (15/18.5)
Max. Spindle Torque
Nm
52.5/70/95.5/118 (71.6/95.5) Nm52.5/70/95.5/118 (71.6/95.5)
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
36/36/36 m/min 36/36/36
Cutting Feed rate
m/min
10 m/min10
Guideways on all axes
Type
LM guideways TypeLM guideways
Ballscrew Size X,Y & Z Axes (DiaxPitch)
mm
Ø40 X 12 mmØ40 X 12
No. of tools
Nos.
24 (30) Nos.24 (30)
Tool shank configuration
type
BT 40 typeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. Tool length
mm
300 mm300
Max. Tool weight
kg
8 kg8
Tool change time (tool to tool)
sec
1.9 / 2.5* sec1.9 / 2.5*
Length x Width x Height
mm
2345 x 3950 x 3050 mm2345 x 3950 x 3050
Weight
kg
6000 kg6000
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
