MILLING

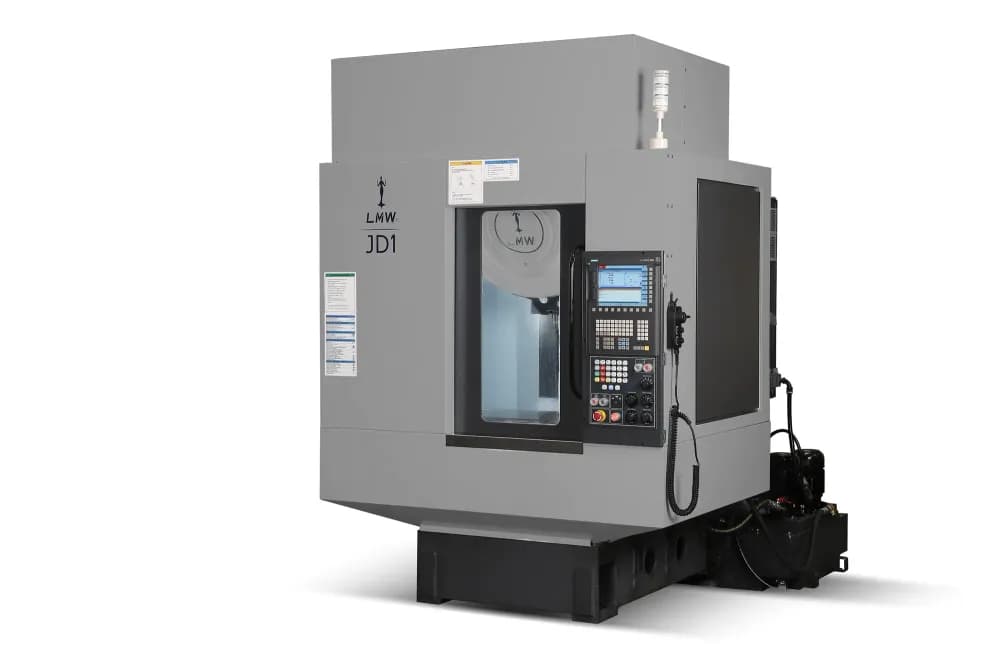

JD1
JD 1 is a high-speed compact Vertical Machining Center designed for precision machining. With axis strokes of 500 × 400 × 320 mm, a 650 × 400 mm table, and a 24,000 rpm high-speed spindle, it enables fast and accurate machining. The JD Series is ideal for Electronics, Medical, Aerospace, and Automobile industries, delivering high productivity, fine surface finishes, and reliable performance for precision applications.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
500 x 400 x 320 mm500 x 400 x 320
Table size
mm
650 x 400 mm650 x 400
Table loading capacity
kg
250 kg250
No. of T-slots
Nos.
3 Nos.3
T Slot size x Pitch
mm
14 x 125 mm14 x 125
Spindle speed
rpm
24000 rpm24000
Spindle bore taper
type
BBT 30 typeBBT 30
Spindle Motor Power (Cont. /Int.)
kW
4.5 / 11 / 26 kW4.5 / 11 / 26
Max. Spindle Torque
Nm
5.4 / 17.5 / 35.5 Nm5.4 / 17.5 / 35.5
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
48/48/48 m/min48/48/48
Cutting feed rate
m/min
21 m/min21
No. of tools
nos
21 nos21
Max. tool length
mm
200 mm200
Max. Tool weight
kg
3 kg3
Tool change time (tool to tool)
sec
1.2 sec1.2
Max. Tool dia with adjacent tool
mm
Ø 60 mmØ 60
Tool shank configuration
type
MAS BT30 / 45° typeMAS BT30 / 45°
Length x Width x Height
mm
1660 x 2677 x 2600 mm1660 x 2677 x 2600
Weight
kg
2700 kg2700
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
0.008 mm0.008
