JD1L

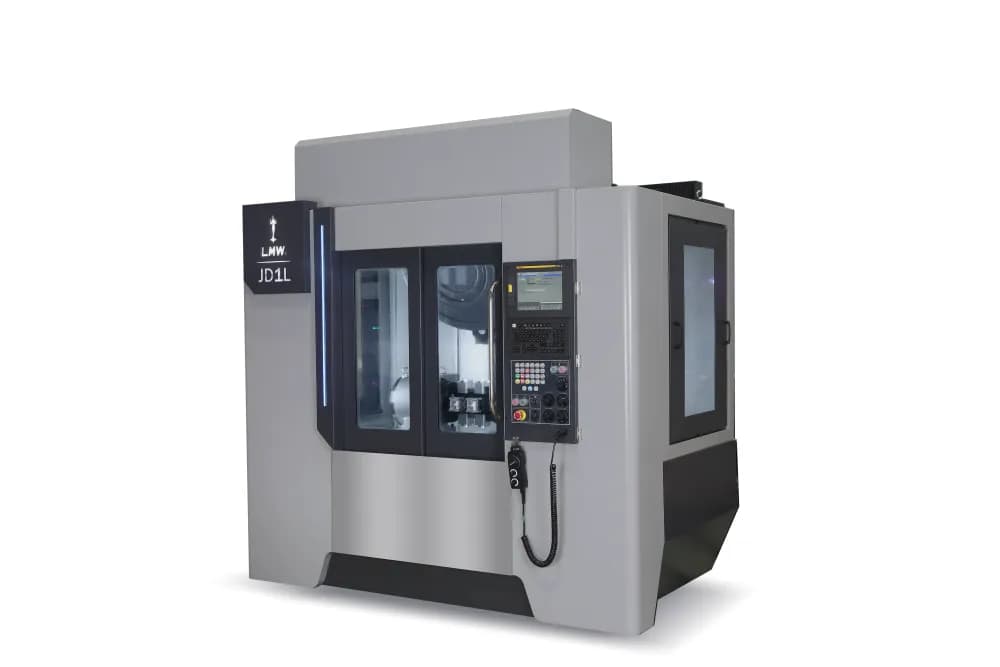

JD1L is a high-speed compact Vertical Machining Center designed for precision machining. With axis strokes of 700 × 400 × 320 mm, a 850 × 400 mm table, and a 24,000 rpm spindle, it enables fast and accurate machining. The JD Series is ideal for electronics, medical, aerospace, and automobile industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
700 x 400 x 320 mm700 x 400 x 320
Distance between Spindle nose & Table top
mm
150 - 470 mm150 - 470
Table size
mm
850 x 400 mm850 x 400
Table loading capacity
kg
300 kg300
No. of T-slots
Nos.
3 Nos.3
T Slot size x Pitch
mm
14 x 125 mm14 x 125
Spindle speed
rpm
24000 rpm24000
Spindle Motor Power (Cont. /Int.)
kW
4.5 / 6 / 11 / 26 kW4.5 / 6 / 11 / 26
Max. Spindle Torque
Nm
5.4 / 7.2 / 17.5 / 35.5 Nm5.4 / 7.2 / 17.5 / 35.5
Spindle bore taper
Type
BBT 30 TypeBBT 30
No. of tools
Nos.
21 Nos.21
Tool shank configuration
type
MAS BT30 / 45° typeMAS BT30 / 45°
Max. Tool dia with adjacent tool
mm
Ø 60 mmØ 60
Max. Tool length
mm
200 mm200
Max. Tool weight
kg
3 kg3
Tool change time (tool to tool)
sec
1.2 sec1.2
Length x Width x Height
mm
2190 x 2660 x 2600 mm2190 x 2660 x 2600
Weight
kg
3600 kg3600
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
0.008 mm0.008
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
