MILLING
JD2L

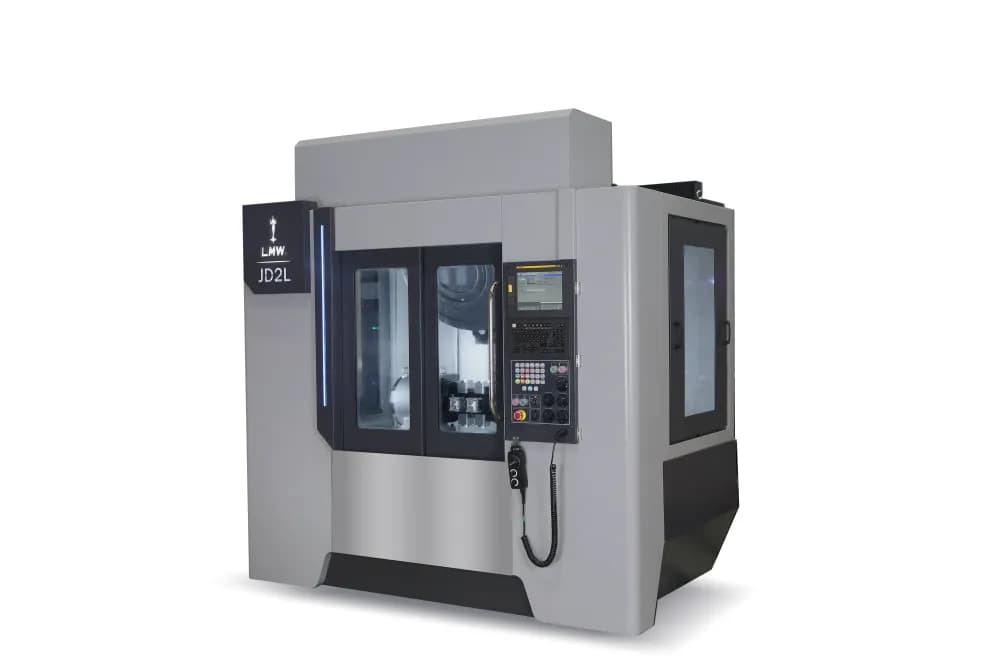

JD2L is a compact Vertical Machining Center designed for precision milling and efficient machining of small to medium components. With axis strokes of 700 × 400 × 320 mm, a 850 × 400 mm table, and a 12,000 rpm spindle, it provides reliable performance and machining stability. The JD Series is suitable for electronics, medical, aerospace, and automobile industries.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
700 x 400 x 320 mm700 x 400 x 320
Distance between Spindle nose & Table top
mm
150 - 470 mm150 - 470
Table size
mm
850 x 400 mm850 x 400
Table loading capacity
kg
300 kg300
No. of T-slots
Nos.
3 Nos.3
T Slot size x Pitch
mm
14 x 125 mm14 x 125
Spindle speed
rpm
12000 rpm12000
Spindle bore taper
type
BT 30 typeBT 30
Spindle Motor Power (Cont. /Int.)
kW
3.7 / 5.5 / 7.5 kW3.7 / 5.5 / 7.5
Max. Spindle Torque
Nm
17.7 / 23.6 / 35 / 47.8 Nm17.7 / 23.6 / 35 / 47.8
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
48/48/48 m/min48/48/48
Cutting Feed rate
m/min
21 m/min21
No. of tools
Nos.
21 Nos.21
Max. tool length
mm
200 mm200
Tool change time (tool to tool)
sec
1.5 sec1.5
Tool shank configuration
type
MAS BT30 / 45° typeMAS BT30 / 45°
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool weight
kg
3 kg3
Controller
Type
Fanuc, Mitsubishi, Siemens TypeFanuc, Mitsubishi, Siemens
Length x Width x Height
mm
2190 x 2660 x 2600 mm2190 x 2660 x 2600
Weight
kg
3600 kg3600
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
0.008 mm0.008
