Smart Preparation for Air-Jet Spinning – Powered by LMW

The textile industry is constantly evolving, driven by the need for higher productivity, superior yarn quality, and sustainable manufacturing practices.

Air-Jet spinning offers an alternate spinning technology that reduced operational complexity, making it particularly well-suited for mills producing man-made fiber yarns such as viscose and polyester. However, the success of Air-Jet spinning extends beyond the spinning machine itself and is critically influenced by the quality and consistency of fiber preparation. Efficient opening, cleaning, blending, and drafting are essential to ensure uniform fiber flow and stable yarn formation, underscoring the importance of a holistic process approach to fully realize the benefits of this technology.

This blog explores how Air-Jet spinning works, its advantages, and why LMW’s Smart Preparatory Machinery —plays a decisive role in unlocking its full potential.

What is Air-Jet Spinning?

Air-Jet spinning is a yarn formation process in which fibres are twisted and bound together using high-velocity compressed air streams instead of traditional mechanical twisting elements.

In this method:

• The fibre strand is drafted to the required fineness
• Two air nozzles rotate the surface fibres around the core fibres
• A stable, low-hairiness yarn structure is formed

The result is a yarn that is:

• Smooth and uniform
• Strong and consistent
• Low in hairiness
• Highly suitable for weaving and knitting applications

Air-Jet spinning is particularly effective for man-made fibres such as viscose and blends, making it ideal for apparel fabrics, home textiles, and technical textile applications.

Why Fibre Preparation is Critical in Air-Jet Spinning

Unlike conventional ring spinning, Air-Jet spinning is extremely sensitive to variations in fibre quality. Even small inconsistencies in fibre length distribution, cleanliness, or sliver uniformity can directly affect yarn strength, appearance, and machine performance.

High-quality fibre preparation ensures:

• Uniform fibre blending
• Effective removal of impurities and micro-dust
• Precise fibre alignment
• Consistent sliver weight
• Reduced end breaks and machine stoppages

This is where modern preparatory machines become the backbone of a successful Air-Jet spinning operation.

• Reduced material handling
• Lower manpower requirement
• Fewer sliver joints and cuts
• Higher card production
• Lower floor space usage
• Reduced energy consumption
• Lower maintenance and operational costs

A streamlined process not only boosts productivity but also improves yarn consistency by minimizing intermediate handling and variation.

Building the Perfect Fibre Flow: LMW’s Preparatory Ecosystem

LMW has developed a complete range of smart preparatory machines specifically optimized for Air-Jet spinning applications. Together, these systems ensure fibres are delivered to the spinning machine in their most uniform, clean, and stable form.

Let’s look at how each stage contributes to yarn excellence.

Gentle Blowroom Technology – Setting the Right Foundation

The Blowroom is the first and most critical step in fibre processing. It determines how well fibres are opened, cleaned, and blended before carding.

LMW’s Gentle Blowroom solutions are designed to:

• Open fibres without damage
• Maintain fibre length integrity
• Ensure consistent tuft size
• Enable accurate blending of multiple fibre lots

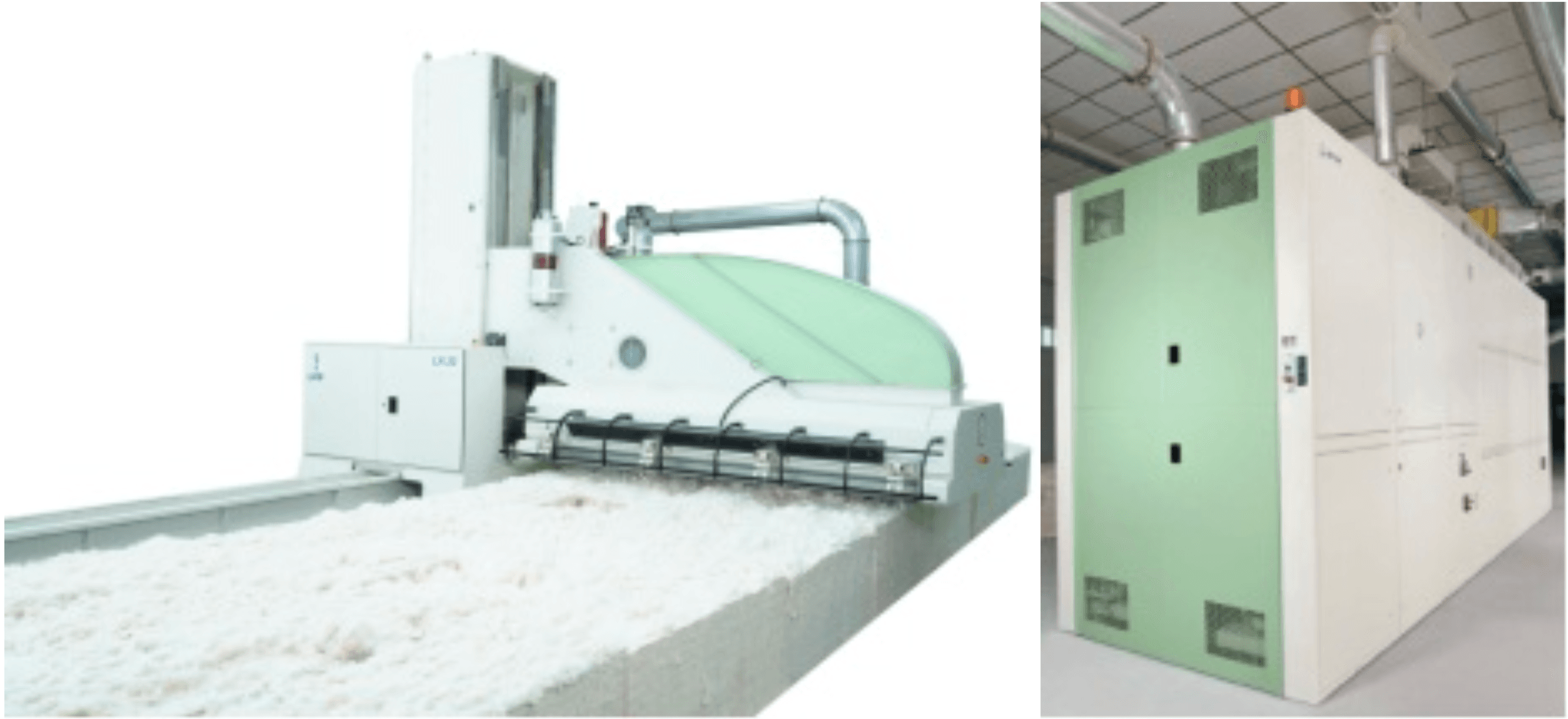

Machines such as high-capacity Bale pluckers and opening & cleaning systems use intelligent scanning, inverter-controlled drives, and optimized suction channels to deliver uniform fibre flow with minimal waste generation.

This gentle yet efficient opening creates the ideal input material for the carding process.

Intelligent Blending with Unimix Systems

Uniform yarn properties start with homogeneous fibre mixing.

LMW’s Unimix systems use multi-chamber blending, controlled air flow, and beaters opening to ensure:

• Accurate mixing of different fibre lots
• Removal of micro-dust
• Stable feeding to cards
• Reduced mass variation

Large buffer volumes allow continuous card feeding while maintaining excellent blending consistency—an essential factor for producing uniform Air-Jet yarn.

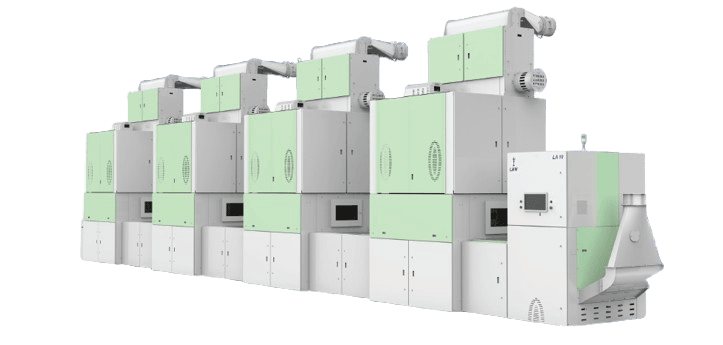

AutoBlend LA10

LMW’s Autoblend LA10 is one of the most preferred blending systems in Air-Jet Spinning mills due to its:

a. Zero Manual Intervention

Human errors in mixing and proportioning are completely eliminated. Automation governs the entire feed process.

b. Highly Accurate Blending

The system maintains blend accuracy (Blending ratio upto 99:1, Blend accuracy of +/-1%) even during long production runs — crucial for mills handling:

1. 100% recycled cotton
2. Cotton + polyester blends
3. Cotton + viscose blends
4. Sustainable fibre mixtures

c. Online Weight Variation Monitoring

This real-time monitoring ensures:

• Every bale or feed slot delivers consistent weight
• Machine stops automatically if deviation occurs
• Blend homogeneity remains intact from start to finish

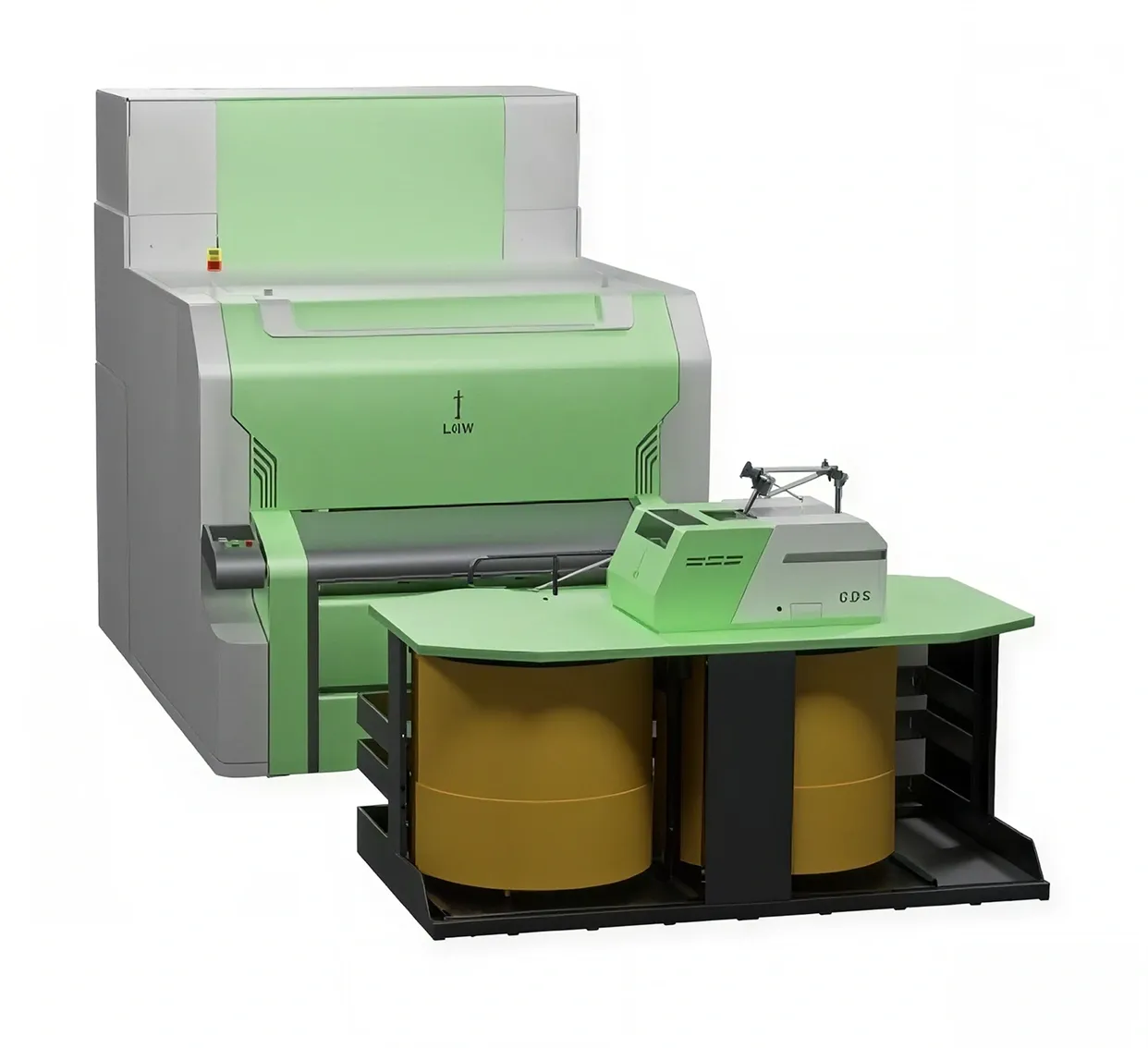

Card with Drafting System (CDS): A Smart Breakthrough

One of LMW’s most innovative contributions to Air-Jet spinning is the Card with Drafting System (CDS).

This system integrates drafting directly into the card, enabling:

• Elimination of breaker draw frames
• Automatic sliver leveling
• High drafting precision using servo control
• Faster sliver piecing
• Compact plant layout

By combining carding and drafting in a single stage, CDS dramatically shortens the preparatory process while improving sliver consistency and reducing operational complexity.

Precision Draw Frames for Final Sliver Perfection

For mills that use conventional Draw Frames, LMW offers both Auto-leveller and Non-Auto-leveller draw frame solutions.

These machines provide:

• High-speed drafting
• Multi-fold doubling
• Spectrogram-based fault detection
• Servo-controlled drafting systems
• Pneumatic piecing mechanisms
• Automated roller cleaning

Auto-leveller Draw Frames further ensure that sliver mass variations are corrected in real time, resulting in exceptionally uniform yarn output.

Operational and Sustainability Benefits

When Air-Jet spinning is supported by optimized preparatory technology, mills gain significant long-term advantages:

Productivity

• Higher machine utilization
• Faster processing speeds
• Reduced downtime

Quality

• Improved yarn uniformity
• Lower hairiness
• Better fabric appearance

Cost Efficiency

• Lower energy consumption
• Reduced manpower
• Lower waste generation
• Compact plant layout

Sustainability

• Reduced raw material loss
• Lower carbon footprint
• Efficient use of power and compressed air
• Minimal reprocessing

These benefits align perfectly with LMW’s philosophy of delivering sustainable, smart solutions for spinning success.

Conclusion: Where Technology Meets Yarn Excellence

Air-Jet spinning represents a new dimension in yarn manufacturing—one defined by speed, precision, and consistency. But the true performance of this technology depends on what happens before spinning begins.

With its comprehensive range of smart Blowroom machines, blending systems, high-performance cards, integrated drafting solutions, and advanced draw frames, LMW provides mills with everything needed to fully harness the power of Air-Jet spinning.
