MILLING
J1

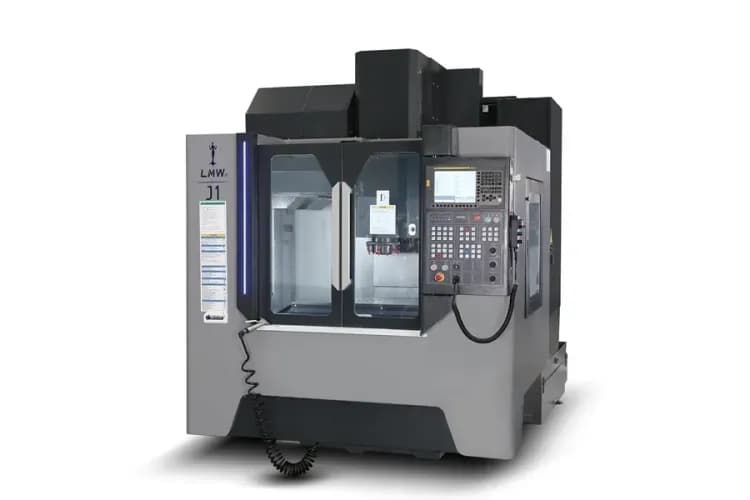

J1 is a versatile Vertical Machining Center (VMC) designed to handle a wide range of components and materials across multiple industries. With axis strokes of 600 × 500 × 500 mm, a 900 × 500 mm table, and spindle speed upto 12,000 rpm, it delivers reliable milling performance and machining flexibility. The J Series is suitable for automobile, die & mould, agriculture & earthmovers, foundry & forging, and oil & gas industries, offering consistent accuracy and dependable productivity for diverse machining applications.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
600 x 500 x 500 mm600 x 500 x 500
Distance between Spindle nose & Table top
mm
150-650 mm150-650
Table size
mm
900 x 500 mm900 x 500
Table loading capacity
kg
500 kg500
T Slot size x Pitch
18 x 100
mm 18 x 100mm
No. of T-slots
Nos.
5 Nos.5
Spindle speed
rpm
10000 rpm10000
Spindle bore taper
type
BT 40 type BT 40
Spindle motor power (Cont. /Int.)
kw
11/15/18.5 (15/18.5) kw11/15/18.5 (15/18.5)
Max. Spindle Torque
Nm
52.5/70/95.5/118 (71.6/95.5) Nm52.5/70/95.5/118 (71.6/95.5)
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
40/40/40 m/min40/40/40
Cutting feed rate
m/min
10 m/min10
Ballscrew Size X,Y & Z Axes (DiaxPitch)
mm
∅40 x 16 mm∅40 x 16
Guideways on all axes
Type
LM guideways TypeLM guideways
No. of tools
nos
24 (30) nos24 (30)
Tool shank configuration
type
BT40 typeBT40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. tool length
mm
250 mm250
Max. tool weight
kgs
8 kgs8
Tool change time (tool to tool)
sec
1.9 / 2.5* sec1.9 / 2.5*
Length x Width x Height
mm
1900 x 3110 x 2845 mm1900 x 3110 x 2845
Weight
kg
4500 kg4500
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
Power
kW
18.5 / 15 / 11 kW 18.5 / 15 / 11
