J5

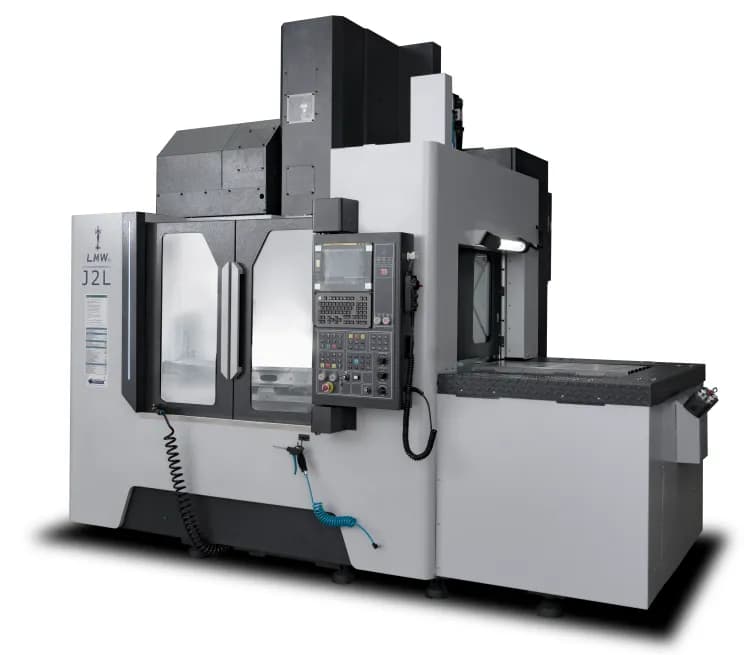

J5 is a Vertical Machining Center (VMC) designed for machining medium to large components with precision and stability. With axis strokes of 800 × 600 × 600 mm, a 1000 × 600 mm table, and spindle speed upto 12,000 rpm, it provides higher machining capacity and flexibility. Available with Rotary Automatic Pallet Changer (RAPC) and Linear Automatic Pallet Changer (LAPC) options, the J Series helps improve productivity and reduce setup time.
Specifications
Description
Unit
Type
X/Y/Z Axis
mm
800 x 600 x 600 mm800 x 600 x 600
Distance between Spindle nose & Table top
mm
150-750 mm150-750
Table size
mm
1000 x 600 mm1000 x 600
Table loading capacity
kg
800 kg800
T Slot size x Pitch
18 x 100
mm 18 x 100mm
No. of T-slots
Nos.
5 Nos.5
Spindle speed
rpm
10000 rpm10000
Spindle bore taper
type
BT 40 typeBT 40
Spindle Motor Power (Cont. /Int.)
kW
11/15/18.5 (15/18.5) kW11/15/18.5 (15/18.5)
Max. Spindle Torque
Nm
52.5/70/95.5/118 (71.6/95.5) Nm52.5/70/95.5/118 (71.6/95.5)
Rapid traverse rate ( X / Y / Z ) - Axis
m/min
40/40/40 m/min40/40/40
Cutting feed rate
m/min
10 m/min10
Ballscrew Size X,Y & Z Axes (DiaxPitch)
mm
∅40 x 16 mm∅40 x 16
Guideways on all axes
Type
LM guideways TypeLM guideways
No. of tools
Nos.
24 (30) Nos.24 (30)
Tool shank configuration
type
BT 40 typeBT 40
Max. Tool dia with adjacent tool
mm
Ø 80 mmØ 80
Max. Tool dia without adjacent tool
mm
Ø 125 mmØ 125
Max. tool length
mm
250 mm250
Max. tool weight
kg
8 kg8
Tool change time (tool to tool)
sec
1.9 / 2.5* sec1.9 / 2.5*
Length x Width x Height
mm
2200 x 3110 x 2945 mm2200 x 3110 x 2945
Weight
kg
5000 kg5000
Positioning Accuracy (X, Y & Z) - Axis
mm
0.01 mm0.01
Repeatability
mm
±0.003 mm±0.003
Controller
Type
Fanuc / Siemens / Mitsubishi TypeFanuc / Siemens / Mitsubishi
Power
kW
18.5 / 15 / 11 kW18.5 / 15 / 11
