COMBED SLIVER SYSTEM

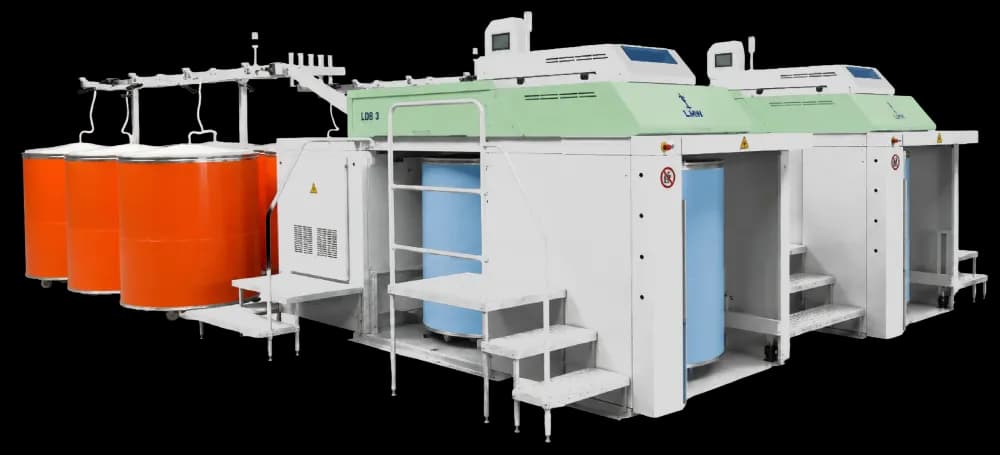

Breaker Draw Frame LDB3 Series
High-Stability Sliver Preparation
Built to deliver precise draft control and consistent sliver quality right from the beginning of the process. The LDB3 Series breaker draw frame, with Single / Twin Delivery compliments the preparatory line with independent drives, high delivery speeds up to 1,100 m/min, versatile to process two different materials, robust self-cleaning top rollers that improve sliver consistency. Built for versatility the LDB3 brings measurable productivity uplift, lowers energy consumption and lower operating costs. LDB3 Variants Offered: 1. LDB3 S - Electronic drafting drive machine & 2. LDB3 - Mechanical drafting drive machine
- State-of-the-art independent drive system for stable operation
- Closed-loop digital control system for delivery sliver hank levelling
- Servo driven draft adjustment in S Draft variant eliminating mechanical gears
- Programmable oscillating stripper for top roller cleaning
- Top roller with needle bearing system for smoother running
- Online Quality Monitoring System (QMS) for real-time sliver consistency monitoring
- High delivery speed up to 1100 m/min (mechanical) for higher productivity
- Kinetic Backup Technology ensures smooth restart after power resumption
Flexibility
The independent drive arrangement and the automatic can changer results in increased process efficiency without compromising on sliver quality. Two different materials can be processed simultaneously at different speeds making the machine more versatile.
Inverter Control for Main Motor, Coiler, Can drive and Suction Motor - The delivery speed change is possible only through inverter controlled main motor drive. Similar inverter controls are provided for coiler and can drive.

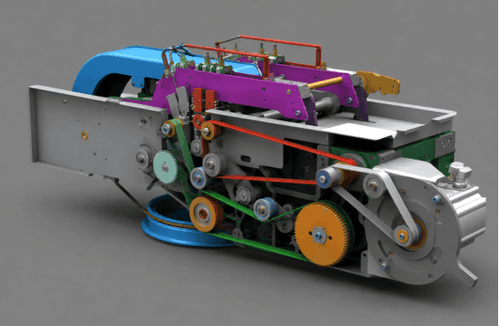

S Draft
The efficient servo motor drive deployed in this variant makes the operation simpler and user friendly. The machine does not require change gears for changing the total draft. Users can change the draft by simply keying in the required values in the display. This eliminates the machine’s downtime associated with such changeovers. Overall utilization of the machines improves significantly.
Closed Loop Digital Control System on Sliver (Hank Levelling)
The electronic drafting machine is incorporated with levelling system, which leads to consistent sliver quality resulting in premium yarn output. This also acts as an additional control point.
