COMBED SLIVER SYSTEM

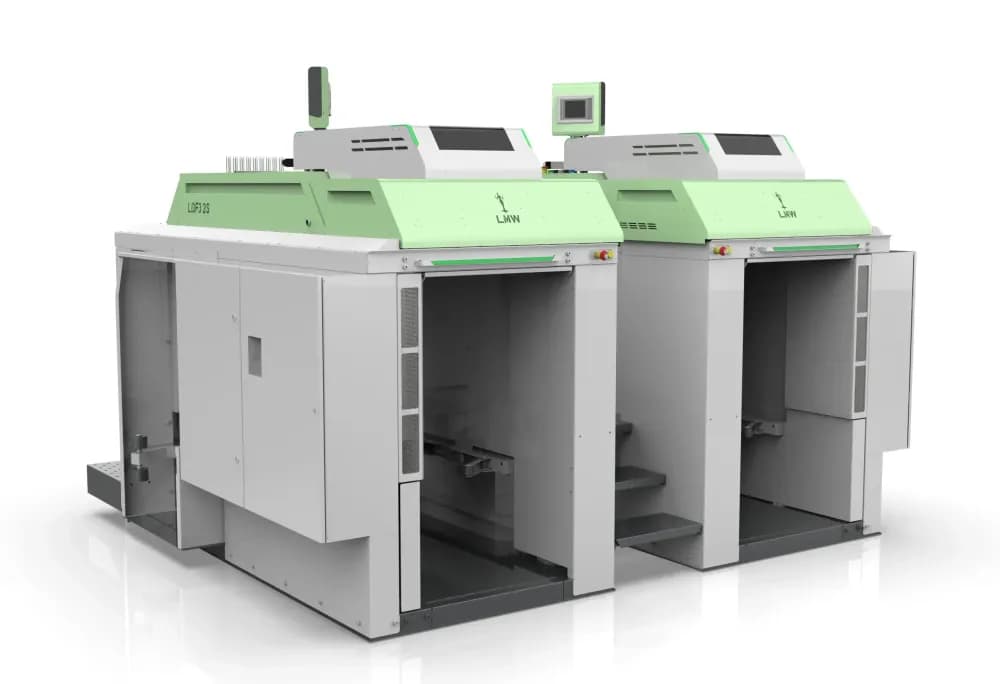

Finisher Draw Frame LDF3 Series
Autolevelling Precision at High Speeds
A performance-driven finisher draw frame engineered for sliver uniformity and production efficiency. The LDF3 Series with Single Delivery (LDF3 S) / Twin Delivery (LDF3 2S) delivers consistent sliver quality at higher speeds up to 1100 mpm, through its advanced Duo Digital Auto Levelling system. The optimised drafting path enhances fibre alignment and fibre-to-fibre cohesiveness at higher speeds. The Twin delivery variant offers flexibility in operation due to independent drive arrangement and a compact footprint. LDF3 Variants Offered: 1. LDF3 S – Single Delivery 2. LDF3 2S – Twin Delivery
- Unique 4-over-3 drafting system with pressure bar for superior drafting control
- Duo Digital Auto-Levelling concept for precise levelling action
- Shortest scanning length for fast and precise correction
- Integrated suction system for drafting console and sliver feed during scanning
- SQ SET (Smart Quick Setting) – Auto suggestion of levelling action point
- TR Strip oscillating stripper ensuring clean top rollers
- Quality Monitoring System for real-time sliver quality monitoring
- High delivery speed up to 1100 m/min (mechanical) for superior productivity

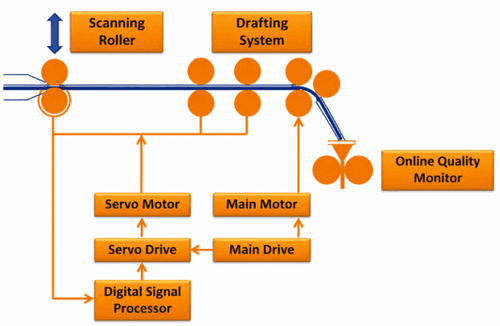

Best Sliver Quality - Duo Digital Levelling Principle
LDF3 Series is equipped with Duo Digital concept, paves the way to achieve benchmark sliver quality. Accuracy in measurement of input sliver and transmitting to drives when any deviation is measured helps in achieving perfect sliver quality in delivery.

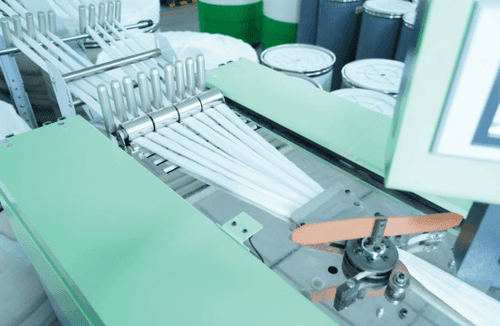

Scanning
Perfect scanning serves as gateway for perfect levelling. The proven tongue and groove technique with optimum diameter of scanning roller ensures accurate measurement.
Levelling
Servo drive concept adapted for the drive systems pitches the right quality in output sliver. Elimination of gear box to transmit the drive simplifies and enhances the levelling operation. This new drive concept for levelling eliminates the uncertainty and nullifies even minute chances of error.
LDF3 2S - Space Savings
The twin delivery design of the LDF3 2S, enhances productivity while maintaining a compact footprint, making it ideal for modern spinning mills. Its space-efficient structure allows mills to optimize floor utilization without compromising performance.
