COMBED SLIVER SYSTEM

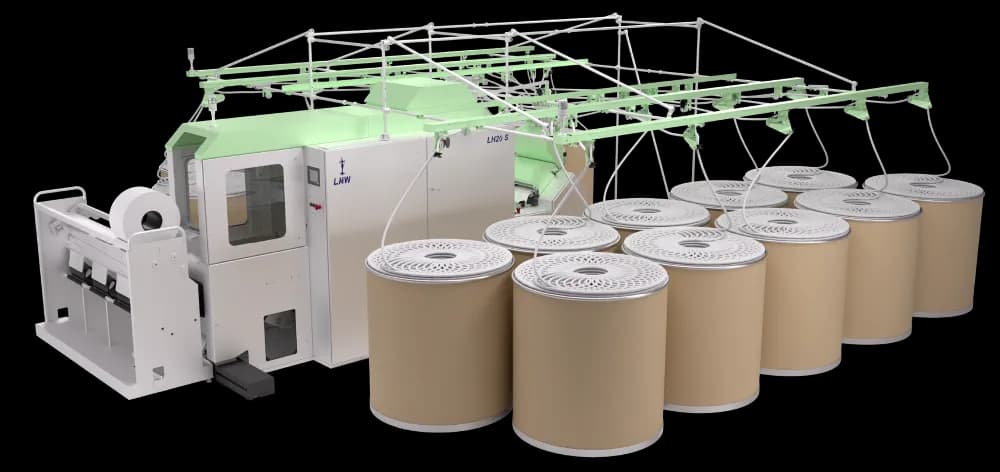

Lap Former LH20 S
High-Quality Lap Preparation
Delivers perfectly aligned, uniform laps to boost combing efficiency and downstream yarn consistency. The LH20 S Lap Former equipped with unique single-servo drafting system sets a new benchmark for lap quality and doff efficiency, delivering compact and uniform lap sheets. The optimised drafting geometry improves fibre control and enhances lap formation. The PRO-in control system enables consistent lap build while supporting higher productivity of up to 680 kgs/hr with perfect lap levelling for superior CV%.
- Production up to 680 Kgs/hr
- Delivery speed up to 200 m/min (depending on raw material)
- Unique single-servo drafting system with belt drive for precise drafting
- Timing belt drives eliminates frequent maintenance
- Kinetic Power Backup technology ensures uninterrupted lap formation during power cuts
- Lap weight levelling – Lap 1 mtr CV less than 0.5%
- Dedicated suction system ensures effective waste removal
- Compact footprint for better space utilization

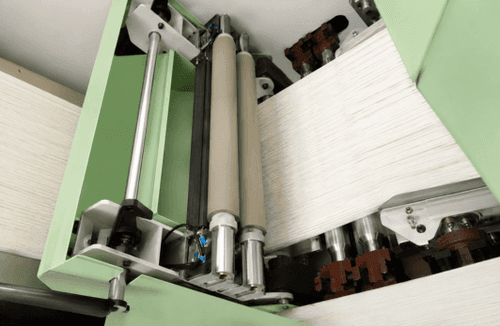

Drafting System
The Lap Former LH20 S features a unique single-servo drafting system designed to deliver precise control and high-quality lap formation. Its 2/2 spring-loaded drafting arrangement with belt drive ensures perfect fiber control. The reduced fiber movement during drafting helps maintain strong batt formation and produces a uniform, compact lap sheet, enabling the machine to operate at higher running speeds. Additionally, the servo-controlled drafting mechanism allows for fine lap weight adjustments, ensuring consistent lap quality.

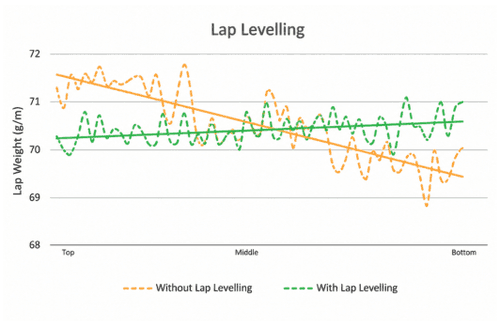

Top-notch Quality
he LH20 S delivers top-notch lap quality through its advanced PRO-IN control system, which ensures precise and uniform lap preparation. A unique single-head drafting system with servo drive provides accurate drafting control and process consistency. The system incorporates full lap weight monitoring along with lap weight levelling, enabling continuous control of lap uniformity. These features help produce a compact and uniform lap sheet across the entire width, achieving excellent consistency with a Lap 1 m CV of less than 0.5%.
Lap Monitoring
The machine incorporates an advanced lap monitoring system where every lap is automatically weighed to ensure consistent quality. If the lap weight crosses the preset limit, the machine automatically stops, preventing off-standard production. This automated monitoring eliminates the need for manual lap checking, improving operational efficiency while ensuring reliable lap quality control.
